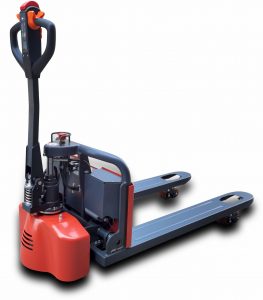

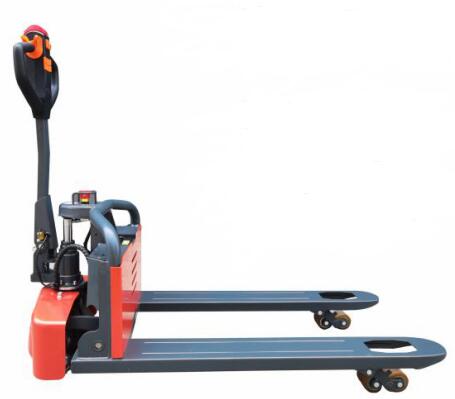

EPT15 Mini Walkie full electric pallet truck Li-ion

i-LIFT mini walkie full electric pallet truck (Li-ion) with solid metal shields not only protect the drive system, but also protect the operator's feet from injury.

Bucher power pack with IP67 motor.

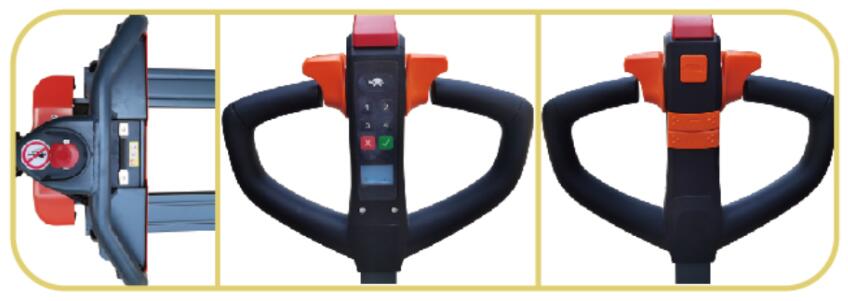

Ergonomic & Smart Tilter design, integrated PIN code panel with LCD display for smart control and operation.

The turtle speed switch on the handle makes low speed control more precise.

One step exchange Lithium-ion batter, high reliable, standard 24V/25AH, option 24V/30AH

2.5h Quick charing(24V/10A charger), 4h long working time.

Quiet operation, Curtis control specially works in narrow aisle.

72 units can be loaded in one 20 feet container



i-LIFT ModelEPT15
Drive unitElectric
Operator typeWalkie
Capacitykg1500
Load centermm600
Wheelbasemm1220
Wheel material(Driving/balance/front wheel)PU
Wheel number(Driving/balance/front wheel)piece1/0/4
Driving wheel sizemmØ210x70
Front wheel sizemmØ80x70
Min. fork heightmm85
Max. fork heightmm190
Max. lifting heightmm105
Outside width between forksmm560/680
Inside width between forksmm240/360
Fork lengthmm1150/1220
Fork widthmm160
Fork thicknessmm50
Overall lengthmm1540
Overall widthmm560/680
Overall height(with/without handle)mm1250/560
Turning radiusmm1350
Travel speed, with load/without loadkm/h4.5
Max. gradeability, with load/without load%3/5
Service brakeElectromagnetic brake
Drive motorkwDC 0.75
Lift motorkwDC 0.5
Battery voltage/capacityV/Ah24V/25Ah
Battery weightkg5
ControllerCurtis
Truck weightkg155/160

Details:

Types of pallet truck:

As a professional pallet truck manufacturer for many years, we have developed various kinds of stackers, such as the hand pallet truck, stainless pallet truck, 5 tonne pallet truck, low profile pallet truck, galvanized pallet truck, dual direction pallet truck, roll pallet truck, full electric pallet truck with Li-ion etc…

After-sale service:

  1. Each equipment comes with specs instruction
  2. 1 Year Limited Warranty
  3. We have been in manufacturing pallet truck for many years. And we have a professional and perfect after-sales service team

Pallet truck manufacturer:

As a professional manufacturer of various types of material handling & lifting products, pallet truck is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase one type of hand pallet truck or electric pallet truck (Li-ion), you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
