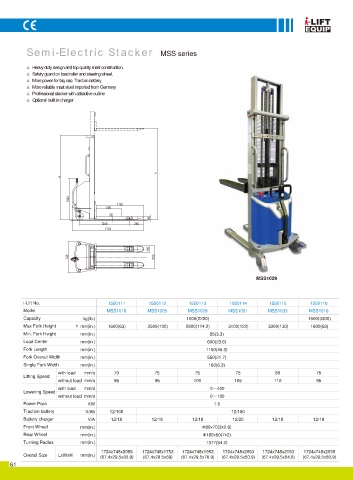

Semi-Electric Stacker MSS series

▲ Heavy duty design and top quality mast construction.
▲ Safety guard on load roller and steering wheel.
▲ More power for big cap. Traction battery
▲ More reliable mast steel imported from Germany
▲ Professional stacker with attractive outline
▲ Optional built in charger

MSS1029
MS1029
i-Lift No. 1550101 1550102 1550103 1550104 1550105 1550106 1550107 1550108 1550109 1550110
i-Lift No. 1550111 1550112 1550113 1550114 1550115 1550116 MS1016 MS1024 MS1029 MS1031 MS1033 MS1516 MS1524 MS1529 MS1531 MS1533
(lb.) (2200) (3300)
Model MSS1016 MSS1025 MSS1029 MSS1031 MSS1033 MSS1516
(in.) (63) (96.5) (114) (122) (130) (63) (96.5) (114) (122) (130)
Capacity kg(lb.) 1000(2200) 1500(3300) (in.) (3.5)
Max Fork Height h mm(in.) 1600(63) 2500(100) 2900(114.2) 3100(122) 3300(130) 1600(63) (in.) (23.6) (15.7)
Min. Fork Height mm(in.) 85(3.3) (in.) (44.6)
Load Center mm(in.) 600(23.6) (in.) (17.7)
Fork Length mm(in.) 1150(45.3) (in.) (26.4)
Fork Overall Width mm(in.) 550(21.7)
Single Fork Width mm(in.) 160(6.3)
(in.) (45.3)
with load mm/s 70 75 75 75 80 75
Lifting Speed (in.) (21.3)
without load mm/s 95 95 100 105 110 95 (in.) (6.3)
with load mm/s 0～400 (in.) 80(3x3) (3x2.6)
Lowering Speed
without load mm/s 0～180 (in.) (7x2)
Power Pack KW 1.5 (in.) (60)
Traction battery V/Ah 12/100 12/150 1.5/12
Battery charger V/A 12/18 12/18 12/18 12/20 12/18 12/18
Front Wheel mm(in.) Ф80x70(3x2.6) (in.) (71.7)
Rear Wheel mm(in.) Ф180x50(7x2) (in.) (31.5) (40) (31.5) (40)
Turning Radius mm(in.) 1377(54.2) (in.) (82.3) (71.7) (79.7) (83.7) (87.6) (82.3) (71.7) (79.7) (83.7) (87.6)
1724x748x2055 1724x748x1753 1724x748x1953 1724x748x2053 1724x748x2153 1724x748x2055 (lb.) (924) (1012) (1078) (1166) (1210) (1056) (1188) (1276) (1309) (1342)
Overall Size LxWxH mm(in.) (67.4x29.5x80.9) (67.4x29.5x69) (67.4x29.5x76.9) (67.4x29.5x80.9) (67.4x29.5x84.8) (67.4x29.5x80.9)
