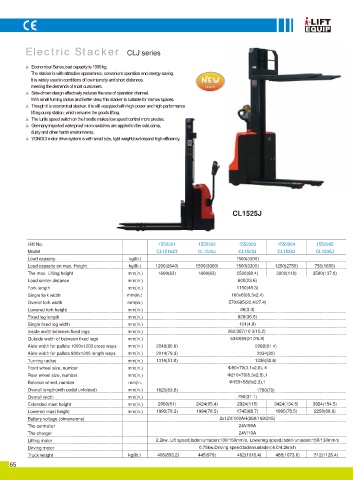

Electric Stacker CLJ series Electric Stacker CLJB series

▲ Economical Series,load capacity is 1500 kg. ▲ Economical Series,load capacity is 1500 kg.
The stacker is with attractive appearance, convenient operation and energy saving. The stacker is with attractive appearance, convenient operation and energy saving.
lt is widely used in conditions of low intensity and short distances. lt is widely used in conditions of low intensity and short distances.
meeting the demands of most customers. meeting the demands of most customers.
▲ Side-driven design effectively reduces the size of operation channel. ▲ Side-driven design effectively reduces the size of operation channel.
With small turning radius and better view, this stacker is suitable for narrow spaces. With small turning radius and better view, this stacker is suitable for narrow spaces.
▲ Though it is economical stacker, it is still equipped with high-power and high-performance ▲ Though it is economical stacker, it is still equipped with high-powerand high-performance
lifting pump station, which ensures the goods lifting. lifting pump station, which ensures the goods lifting.
▲ The turtle speed switch on the handle makes low speed control more precise. ▲ The turtle speed switch on the handle makes low speed control more precise.
▲ Germany imported waterproof micro-switches are applied in the cold,damp, ▲ Germany imported waterproof micro-switches are applied in the cold,damp,
dusty and other harsh environments. dusty and other harsh environments.
▲ YONGCI motor drive system is with small size, light weight,low lossand high efficiency. ▲ YONGCI motor drive system is with small size, light weight,low lossand high efficiency.
CL1516JB

i-lift No. 1552401 1552402 1552403 1552404
Model CL1516JB CL1525JB CL1530JB CL1535JB
Power unit Electric
Operation Pedestrian
Rated traction weight kg(lb.) 1500(3300)
Load center mm(in.) 600(23.6)
Axle centre to fork face mm(in.) 720(28.3)
CL1525J Wheel base mm(in.) 1167(45.9)
Wheels type
PU
Driving wheel size mm(in.) Φ210×70(8.3x2.8)
Bearing wheel size mm(in.) Φ80×70(3.1x2.8)
Additional wheels ( dimensions ) mm(in.) Φ115×55(4.5x2.2)
i-lift No. 1552301 1552302 1552303 1552304 1552305 Wheels,number front/rear (x = driven) 1×+1/4
Model CL1516JD CL1516J CL1525J CL1530J CL1535J Tread, front mm(in.) 522(20.5)
Load capacity kg(lb.) 1500(3300) Tread, rear mm(in.) 410/535(16.1/21)
Load capacity on max. Height kg(lb.) 1200(2640) 1500(3300) 1500(3300) 1250(2750) 750(1650) Height of mast, lowered mm(in.) 2014(79.3) 1745(68.7) 1995(78.5) 2245(88.3)
The max. Lifting height mm(in.) 1600(63) 1600(63) 2500(98.4) 3000(118) 3500(137.8) The max lifting height mm(in.) 1600(63) 2500(98.4) 3000(118) 3500(137.8)
Load center distance mm(in.) 600(23.6) Height of mast, extended mm(in.) 2424(95.4) 2924(115) 3424(134.8) 3924(154.5)
Fork length mm(in.) 1150(45.3) Overall height(With handle) mm(in.) 700/1225(27.6/48.2)
Single fork width mm(in.) 160x60(6.3x2.4) Overall length mm(in.) 1810(71.2)
Overall fork width mm(in.) 570/695(22.4/27.4) Length to fork face mm(in.) 590(23.2)
Lowered fork height mm(in.) 86(3.4) Overall width mm(in.) 790(31.1)
Fixed leg length mm(in.) 928(36.5) Fork dimensions mm(in.) 60/160/1150(2.4/6.3/45.3)
Single fixed leg width mm(in.) 124(4.9) Width of forks mm(in.) 570/695(22.4/27.4)
Inside width between fixed legs mm(in.) 262/387(10.3/15.2) Min Ground clearance mm(in.) 26(1)
Outside width of between fixed legs mm(in.) 534/659(21/25.9) Aisle width with pallet 1000 x 1200 across forks mm(in.) 2074(81.7)
Aisle width for pallets 1000x1200 cross ways mm(in.) 2048(80.6) 2068(81.4) Aisle width with pallet 800 x 1200 along forks mm(in.) 2040(80.3)
Aisle width for pallets 800x1200 length ways mm(in.) 2014(79.3) 2034(80) Min.Turning radius mm(in.) 1342(52.8)
Turning radius mm(in.) 1316(51.8) 1336(52.6) Travel speed,laden/unladen km/h 4.0/4.2
Front wheel size, number mm(in.) Φ80×70(3.1x2.8), 4 Lifting speed, with/without load mm/s 92/136
Rear wheel size, number mm(in.) Φ210×70(8.3x2.8),1 Lowering speed, with/without load mm/s 112/98
Balance wheel, number mm(in. Φ150×58(6x2.3),1 Maximum climbing ability, with/without load % 6/8
Overall length(with pedal unfolded) mm(in.) 1620(63.8) 1780(70) Service brake Electromagnetic
Overall width mm(in.) 790(31.1) Drive motor, 60 minute rating kw 0.75
Extended mast height mm(in.) 2060(81) 2424(95.4) 2924(115) 3424(134.8) 3924(154.5) Lift motor rating at S3 15% kw 2.2
Lowered mast height mm(in.) 1990(78.3) 1994(78.5) 1745(68.7) 1995(78.5) 2250(88.6) Battery according to DIN43531/35/36A,B,C,no no
Battery voltage (dimensions) 2x12V/100AH(260/169/215) Battery voltage/rated capacity V/Ah 2x12/100
The controller 24V/90A Battery weight(±5%) kg(lb.) 2x27(59.4)
The charger 24V/10A Type of drive control DC
Lifting motor 2.2kw. Lift speed,laden/unladen:100/150mm/s, Lowering speed,laden/unladen:150/130mm/s Steering type Mechanical
Driving motor 0.75kw.Driving speed:laden/unladen:4.0/4.2km/h Service weight kg(lb.) 439(965.8) 492(1082.4) 504(1108.8) 526(1157.2)
Truck weight kg(lb.) 406(893.2) 445(979) 462(1016.4) 488(1073.6) 512(1126.4)
