DG Drum Grab

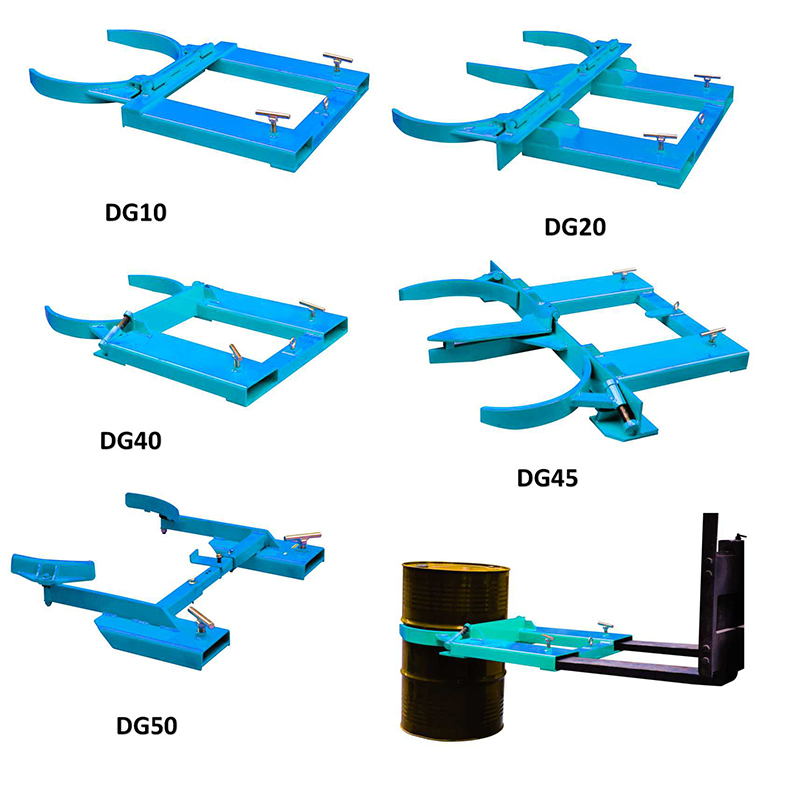

This DG series (including DG10, DG20, DG30, DG45, DG50)drum grab is very convenient for drum handling, it is used together with the forklift, it is fork mounted automatically. They are suitable for single drum, double drums,steel drum and plastic drum or poly drum...

Easily lift drums without hydraulic or electric connections, simply slip onto forks and tighten hand screws. Heavy duty steel construction. Lifts, transports and deposits drums without leaving the driving position.

Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, then it will be released automatically.

This drum grab is a heavy duty design. Compact and rigged structure make it more durable. It can easily and quickly lift drums without hydraulic or electric connections. Just simply slip onto forks and tighten hand screws. Besides, the lifts, transports, and deposits drums operation don’t need to leave the driving position. Form pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

ModelDrum typeCapacity (kg/lb /per drum)DrumFork pocketsNet weight kg(lb.)
DG10Single steel drum1500 (3300)55140*50 (5.2*2)55(121)
DG20Double steel drum1500 (3300)55178*57 (7*2.3)90(198)
DG30Adjustable single steel drum1500 (3300)30 or 55140*50 (5.2*2)52(115)
DG40Adjustable steel/plastic drum1500 (3300)30 or 55178*57 (7*2.3)56(125)
DG45Adjustable double steel drum1500 (3300)30 or 55178*57 (7*2.3)87(194)
DG50Adjustable single poly drum1000(2200)30 or 55136*38 (5.4*1.5)18(41)

The Features of Drum Grab:

  • Heavy duty steel construction.
  • Easily and quickly lift drums without hydraulic or electric connections.
  • Lifts, transports and deposits drums without leaving the driving position.
  • Form pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

Attention and warning :

  1. Please add a little light mechanical lubricant to each moving part before use to ensure the safety and reliability of each part. Confirm that the weight of the drum and its contents is not greater than the rated load of this product.
  2. When using, connect the lifting ring on the four corners of the equipment to the sling, and make sure that the connection is strong enough and the lifting capacity of the sling is enough to ensure the safety of the operation. During the work, personnel should not be allowed under the bucket clamps and barrels.
  3. When carrying the barreled materials, the operator should first lift the clamp to the top of the bucket and align the clamp core frame with each bucket. If the position of each bucket is slightly separated, the guide spokes of the clamp can be automatically adjusted. The range allows the clip to work properly. In this way, not only can work efficiency be improved, but also the barrels can be arranged neatly and beautifully during stacking.
  4. When the bucket is lowered, the bucket is stabilized, and the fixture is dropped to the dead point, and then the crane is lifted, and the jaws are automatically relaxed.
  5. When clamping and loosening the drum, the clamp must be vertically moved to prevent movement or damage to the drum.
