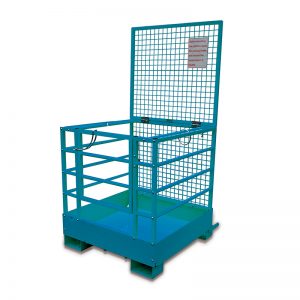

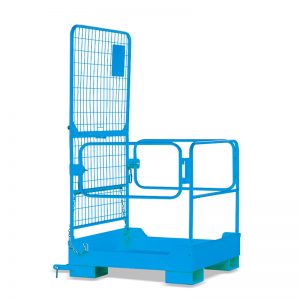

forklift maintance platform

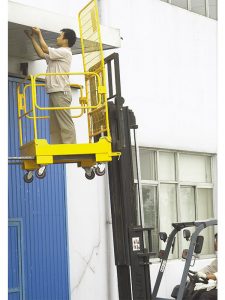

Forklift maintance platform is for overhead access and maintance with safety. Spring loaded inward opening door with safety entry. This unit turns your fork truck into an efficient personnel lift. Safe, affordable access to heights greater than those reached by a rolling ladder.

secured to the fork with heel pins and chain. Slip-resistant floor with drainage holes. Conforms to Health and Safety Guidance PM28 and GN28 standard. Its foldable design made it less storage space, portable and easy to assemble. Rugged steel construction for durable, safe use. Safety features include non-skid platform, screen to shield operator from forklift mast, safety chain to secure platform to mast. Wheels are optional for easy maneuvering.

  • Spring loaded inward opening door with safety latch for safe entry.
  • Unit is secured to the fork with heel pins and chain.
  • Slip-resistant floor with drainage holes.
  • Conforms to health and safety guidance note issue PM28 and GN28 standard.

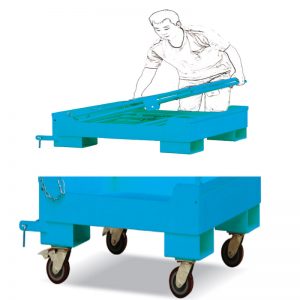

  • Less storage space, portable and easy to assemble.
  • Fitted with personal guard and castors for easy manoeuvrability.
  • High side handrail, swinging gate and safety mid rail.
  • Safety screen shields worker from forklifts mast.
  • Max.capacity: 300kg.

Optional tool tray, optional guard and castors available.

          NK30 A/B/C                                           NK30 D/E/F







i-lift No.181040118104021810403181040418104051810406
ModelNK30ANK30BNK30CNK30DNK30ENK30F
Max. capacity kg(lb.)300(660)
Deck size mm(in.)950*950(38*38)1200*1000(48*40)1000*1000(40*40)950*950(38*38)1200*1000(48*40)1000*1000(40*40)
Max.height mm(in.)2000(80)
Fork spread mm(in.)500(20)
Net weight kg(lb.)68(149.6)85(187)80(176)92(202.4)107(235.4)102(224.4)
