CZ50 platform truck

CZ series platform truck with mesh basket for visual identification on the move, platform trucks with steel mesh panels. Panels individally removeable. Load visible from all directions.  Chassis manufactured from iron angle. Side panels made from mesh steel.

This great value mesh basket platform truck is a heavy duty trolley， Consisting of 1 to 4 half height removable mesh panels that allow the trolley to be configured to load, or to be used as an open ended platform truck. Different combinations of multi-function flatbed trucks can be used for different work needs,This ensures your load is completely secure and can be transported safely. Ideal for use in a wide variety of working environments.

2 Swivel castors with brakes and 2 fixed wheels, rubber tries, dia 200mm roller bearings. Delivered flat packed for easy bolt-on assembly.

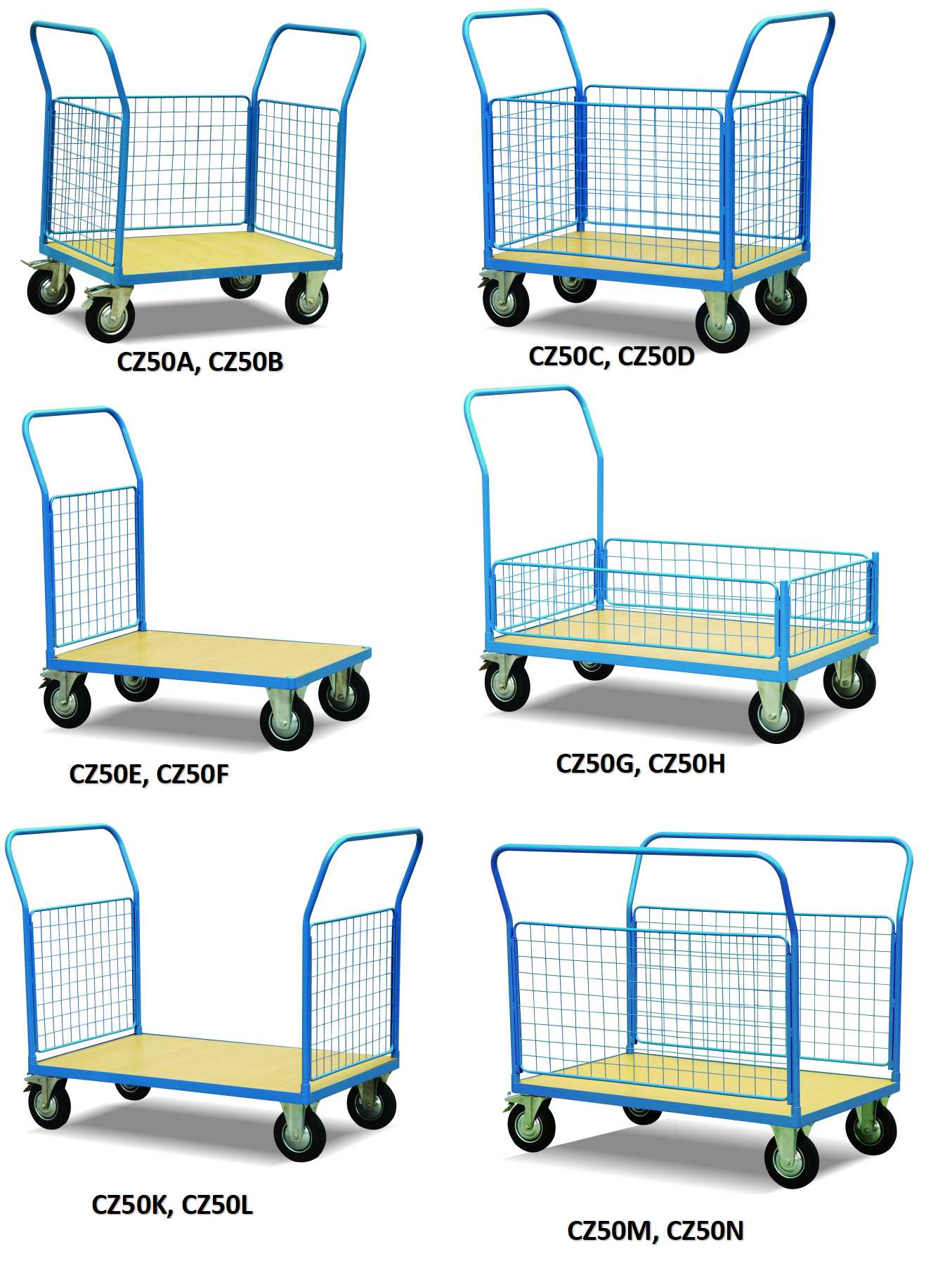

The platform truck has models CZ50A, CA50B, CZ50C, CA50D, CZ50E, CA50F, CZ50G, CA50H, CZ50K, CA50L, CZ50M, CA50N,

i-Lift No.101350110135021013503101350410135051013506
ModelCZ50ACZ50BCZ50CCZ50DCZ50ECZ50F
Max. Capacity kg(lb.)500(1100)
Platform Size  L*W mm(in.)1000*700(40*27.6)1200*800(47*31.5)1000*700(40*27.6)1200*800(47*31.5)1000*700(40*27.6)1200*800(47*31.5)
Platform height mm(in.)270(10.6)
Castor/Wheel mm(in.)200*45(8*1.8)
Overall size (L*W*H) mm(in.)1200*700*11701400*800*11701200*700*11701400*800*11701100*700*11701300*800*1170
(47.2*27.6*46.1)(55*31.5*46.1)(47.2*27.6*46.1)(55*31.5*46.1)(44*27.6*46.1)(51.2*31.5*46.1)
Net Weight kg(lb.)44(96.8)49(107.8)45(99)50(110)35(77)38(83.6)
i-Lift No.101350710135081013509101351010135111013512
ModelCZ50GCZ50HCZ50KCZ50LCZ50MCZ50N
Max. Capacity kg(lb.)500(1100)
Platform Size  L*W mm(in.)1000*700(40*27.6)1200*800(47*31.5)1000*700(40*27.6)1200*800(47*31.5)1000*700(40*27.6)1200*800(47*31.5)
Platform height mm(in.)270(10.6)
Castor/Wheel mm(in.)200*45(8*1.8)
Overall size (L*W*H) mm(in.)1100*700*11701300*800*11701200*700*11701400*800*11701000*930*11701200*1030*1170
(44*27.6*46.1)(51.2*31.5*46.1)(47.2*27.6*46.1)(55*31.5*46.1)(40*36.6*46.1)(47*40.6*46.1)
Net Weight kg(lb.)40(88)43(94.6)41(90.2)44(96.8)43(94.6)46(101.2)



Key Features:

  • Heavy duty platform truck (1000 x 700mm &1200 x 800mm platform)
  • Made of durable welded tubular steel
  • Sturdy beech-effect timber platform
  • Mesh walls on one side with one handle, four sides with one handle, two sides with two handles, three sides with two handles, four sides with two handles.
  • Two fixed and two swivel castors with brakes and rubber tyres
  • Maximum load: 500kg
