Steel platform hand truck trolly

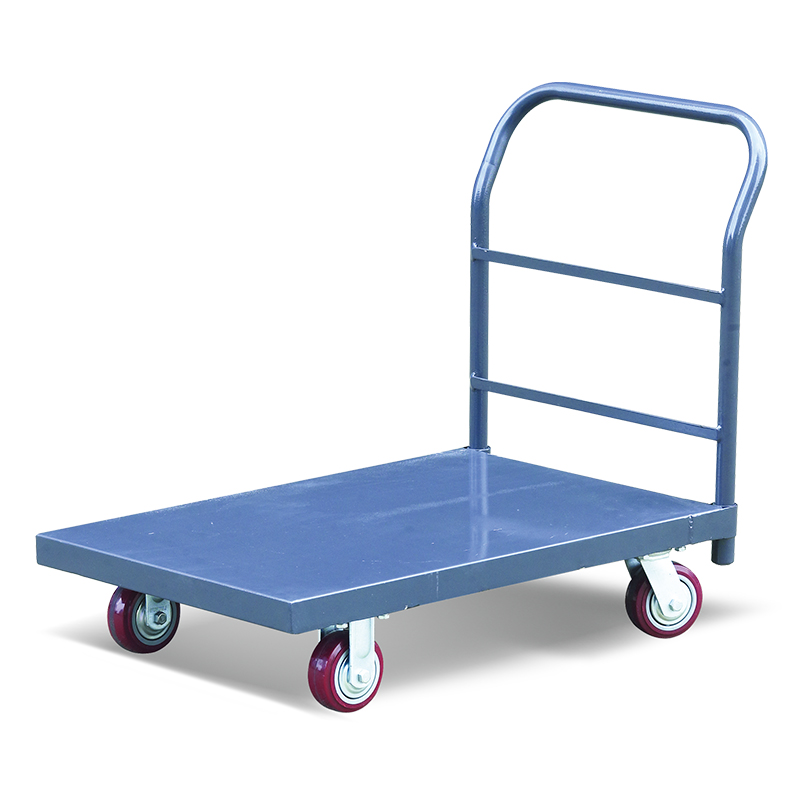

This all welded heavy duty 14 gauge steel decks, reinforced with internal. Iongitudinal stiffening members for extra strength. Removable pipe handle. bolt-on casters are double ball race, two swivel and two rigid casters. Durable baked gray enamel finish.

YF2436,YF2448,YF3048,YF3060,YF3672, are 450kg(1000lbs) capacity with different platform size.

XF2436,XF2448,XF3048, XF3060,XF3672, are 900kg(2000lbs) capacity with different platform size.

ZF2436,ZF2448,ZF3048,ZF3060,ZF3672, are 540kg(1200lbs) capacity with different platform size.

i-lift No.1011401101140210114031011404101140510114061011407
ModelYF2436YF2448YF3048YF3060YF3672XF2436XF2448
Capacity kg(lb.)450(1000)900(2000)
Platform size mm(in.)610*915(24*36)610*1220(24*48)760*1220(30*48)760*1525(30*60)915*1830(36*72)610*915(24*36)610*1220(24*48)
Platform height mm(in.)215(8.5)240(9.5)
Handle height mm(in.)840(33)865(34)
Caster wheel mm(in.)125*50(5*2)150*50(6*2)
Caster typePoly
Net Weight kg(lb.)30(66)35(77)40(88)45(99)56(123)31.5(70)36.5(80)

i-lift No.10114081011409101141010114111011412101141310114141011415
ModelXF3048XF3060XF3672ZF2436ZF2448ZF3048ZF3060ZF3672
Capacity kg(lb.)900(2000)540(1200)
Platform size mm(in.)760*1220(30*48)760*1525(30*60)915*1830(36*72)610*915(24*36)610*1220(24*48)760*1220(30*48)760*1525(30*60)915*1830(36*72)
Platform height mm(in.)240(9.5)280(11)
Handle height mm(in.)865(34)905(37)
Caster wheel mm(in.)150*50(6*2)200*50(8*2)
Caster typePolyRubber
Net Weight kg(lb.)40.5(90)46.5(103)57.5(127)39(86)44(97)48(106)54(120)65(143)
