SM1000 electric mini tow tractor

What is Electric Mini Tow Tractor?

The electric mini tow tractor is a compact battery-powered towing machine designed to pull carts, trailers, trolleys, and other wheeled loads safely and efficiently in industrial, commercial, and logistics environments. It is widely used to reduce manual handling effort and improve productivity when moving heavy loads over short to medium distances.

With a wide range of specs, accessories and interchangeable parts, the electric tow tractors can be adapted to suit most needs, whether it is a static caravan you are moving, a train chassis, or wind turbines. This includes different types of surfaces, from clean factory floors to gravel.

Our tow tugs are easy to use, low maintenance and cost effective so you can focus on what you do best and not worry about your tow tug.

The tow tractor has models SM1000N, SM1000B(S), SM1500N, SM2000N, SM1000D, SM1500D, SM2000D, SM3000, SM3500, SM6000.

The best part is that there is no need for a driving or forklift license to operate one.

1.Very easy to connect the hook to the object in an instant with almost no effort;
2.Travel speed 0-6.5kw/h, stepless speed control, smooth/controllable speeds;
3.Electrically powered with built-in charger, low battery protection setting;
4.Rubber pneumatic drive wheel with alternative tread patterns and material specifications;

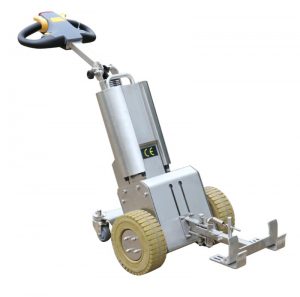

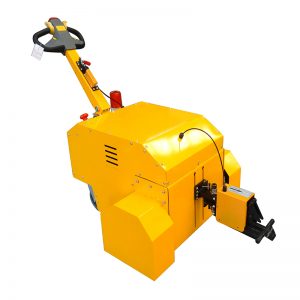

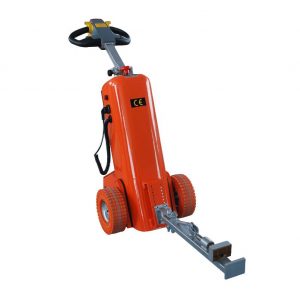

    SM1000N                                     SM1000D



SM1000B(S)                                      SM6000



We have this item in stock in France, if you are located in Europe, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

Specification of Electric Mini Tow Tractor

i-Lift No.1810901181091018109021810903181090418109051810906181090718109081810909
ModelSM1000NSM1000B(S)SM1500NSM2000NSM1000DSM1500DSM2000DSM3000SM3500SM6000
Capacitykg100015002000100015002000300035006000
TiresSolid rubber
Universal wheelPolyurethane(PU)
Tire size, frontmm250320
Tire size, rearmm75200
Height of tilter in drive positionmin.-max.  mm850-1200
Overall length without hookmm5756207007005757007001045
Overall widthmm510500552552510552552800960
Ground Clearancemm40304090
Travel speed slow/fastkm/h1.2-2/3-3.5
Service brakeElectromagnetic
Drive motorkw0.40.50.60.40.50.61.21.52.2
BatteryAh/V20/2438/2445/2420/2438/2445/2480/24100/24
ChargerA/V3/245/243/245/2410/24
Type of drive controlDC Curtis Control
Sound level at driver's ear acc. TO ENdb(A)<70
N.Wkg918519021095217237330360450
Hook typeManualElectricManual or Hydraulic
Hook heightmm220-300/210-290200-300180-420

Features of Electric Mini Tow Tractor

  • Wide Range of Towing Capacities
    Available in multiple models with capacities from 1000 kg up to 6000 kg, suitable for various industrial and commercial applications.
  • Electric Powered Operation
    Fully battery-powered system ensures clean, quiet, and environmentally friendly operation.
  • Self-Contained Charging System
    Equipped with a built-in charger for convenient and easy recharging.
  • Easy Hook Connection
    Designed for quick and effortless attachment to loads, improving efficiency during operations.
  • Stepless Speed Control
    Adjustable speed from low to high (up to ~6.5 km/h) for smooth, precise, and controlled movement.
  • Compact and Maneuverable Design
    Small footprint allows easy operation in tight spaces, warehouses, and narrow aisles.
  • Versatile Applications
    Suitable for moving trailers, carts, caravans, industrial equipment, and heavy loads across different industries.
  • Durable Wheel System
    Equipped with rubber drive wheels and polyurethane universal wheels, enabling use on various surfaces including factory floors and rough terrain.
  • Advanced Safety Features
    Includes electromagnetic braking, low battery protection, and reliable DC Curtis control system.
  • Low Maintenance and Cost-Effective
    Simple electric system reduces maintenance needs and operating costs.
  • User-Friendly Operation
    Easy to operate with minimal training, and no forklift or driving license required in many cases.
  • Customizable and Adaptable
    Wide range of models, accessories, and interchangeable parts to meet specific operational needs.
