MG1000 Mezzanine Safety Gate 1632mm 2000mm 2800mm

What is Mezzanine Safety Gate?

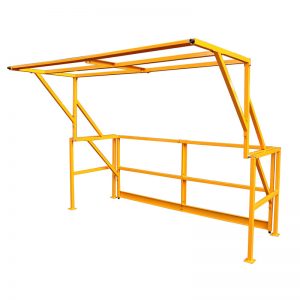

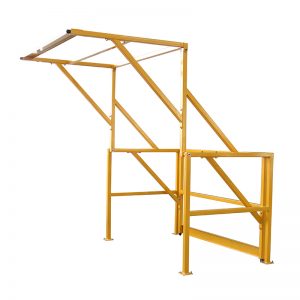

Mezzanine pallet gate: A spring-free pivot pallet gate designed to maintain a protected barrier during pallet loading and picking on elevated platforms. when transferring pallets to and from a mezzanine level, the pallet safety gate will ensure that your workers are in no danger of falling over the side.

Mezzanine floor gates allow pallets to be moved safely between mezzanine floors and ground-level. While the gate is open to forklifts for depositing or removing pallets, the gate is rotated so that pedestrians on the mezzanine can't get near the pallet. Then while the gate is open to the mezzanine for workers to load or unload pallets, the gate is rotated to block the exposed edge of the mezzanine, stopping workers from falling off.

We have models MG1000, MG2000, MG2800 with the different sizes for optional.

Feature of Mezzanine Gate:

• Mezzanine swing gate allows easy and safe access to mezzanines using manual swing-action gates on each end.

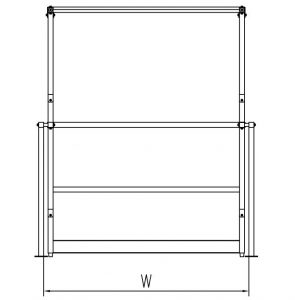

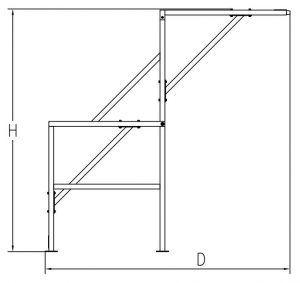

• Gates swing up and down to provide a usable area of 58 W x 70 D x 76 H
• Swing gates are balanced for ease of operation without use of springs.
• Mezzanine safety gate is made of heavy duty welded steel.
• Mezzanine gate features 42 H handrail, 21 H mid-rail and 4 H kick plate for operator safety.
• Space saver detachable compact design.

We have this item in stock in France, if you are located in Europe, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

How to Choose the Right Mezzanine Pallet Gate

Choosing the right mezzanine floor safety barriers depends primarily on the pallet or load dimensions, the clear opening width, available platform depth and overhead clearance.

The MG Series is available in three inside-width configurations:

Before selecting a mezzanine pallet safety gate, check:

• Maximum pallet or load width
• Maximum loaded height
• Pallet depth
• Clear mezzanine opening width
• Available platform depth
• Available overhead clearance
• Surrounding guardrail arrangement
• Floor structure and suitable anchoring locations

For retrofit applications, photographs and dimensional drawings of the existing mezzanine opening are recommended before ordering.

Need help selecting a gate? Send us your pallet dimensions, maximum loaded height, mezzanine opening dimensions and installation photographs, and we can help evaluate the appropriate MG Series model.

Mezzanine Fall Protection for Pallet Loading Areas

Pallet transfer openings on elevated mezzanine floors create a potential fall hazard because part of the surrounding guardrail must remain accessible for forklift loading and unloading.

A mezzanine fall protection gate helps maintain a physical barrier between personnel and the exposed platform edge during pallet transfer operations.

The MG Series uses a dual-sided pivoting design. When the forklift side is open for pallet placement, the operator-side barrier remains closed. After the pallet has been placed in the transfer area, the gate pivots so that the exposed mezzanine edge is guarded before personnel gain access to the pallet.

This makes the gate suitable as part of a broader mezzanine fall protection and guardrail system for warehouses, distribution centers, manufacturing facilities and other elevated material-handling areas.

Unlike removable chains or removable guardrail sections that depend on workers replacing the barrier after use, the interconnected gate arrangement is designed to maintain a barrier at the pallet-transfer opening during normal operating cycles.

Why Choose a Pivot / Up-and-Over Pallet Gate?

The MG Series uses an up-and-over pallet gate configuration with interconnected barriers at the pallet side and operator side.

As the gate pivots, one side opens while the opposite side closes. This allows pallets to be transferred without leaving both sides of the opening accessible at the same time.

The spring-free balanced mechanism is designed for controlled manual operation and reduces reliance on extension springs.

A mezzanine pivot gate is particularly suitable for pallet-transfer areas where a permanent guarded loading zone is preferred over removable chains, lift-out rails or manually replaced barriers.

How Does a Mezzanine Loading Gate Work?

Step 1 — Forklift Loads the Pallet

The forklift-side gate is opened while the operator-side barrier remains closed, preventing personnel from entering the exposed pallet-transfer area.

Step 2 — Pallet Is Placed Inside the Gate

The forklift deposits the pallet inside the protected transfer zone.

Step 3 — Gate Pivots for Operator Access

The gate is rotated so the exposed mezzanine edge is guarded before workers access the pallet from the platform side.

Video Show:

This alternating-barrier operation allows mezzanine floor loading gates and pallet loading safety gates to support material transfer while maintaining separation between personnel and the open platform edge.

FAQ About the mezzanine floor safety gates

1. How does the mezzanine safety pivot gate work?

When the forklift side is open for pallet loading, the gate on the operator side remains closed. After the pallet has been placed inside the transfer area, the gate is rotated so that the forklift-side opening is guarded and the operator can access the pallet from the platform side.

Correct protection depends on proper installation, operation and integration with the surrounding guardrail system.

2. Can the pallet loading safety gates be installed on an existing mezzanine?

It may be installed on an existing mezzanine if the platform structure, opening dimensions, floor condition, surrounding guardrail and anchorage are suitable.

Customers should provide photographs, platform drawings and installation dimensions before ordering.

3. Can the mezzanine floor loading gates be used outdoors?

The standard configuration should only be used in the environment specified by i-Lift.

Outdoor or corrosive environments may require galvanized steel, stainless steel, a special coating, corrosion-resistant fasteners and drainage considerations.

4. Why is a dual-sided pallet gate safer than a removable rail?

A removable rail or ordinary single gate may leave the platform edge unprotected while pallets are being transferred.

A properly installed dual-sided pivot gate is designed so that the operator side is guarded when the forklift side is open, and the forklift side is guarded when workers access the pallet.

5. What safety checks should be completed before use?

Before each shift or operating period, check:

• The gate moves smoothly
• All fasteners and anchors are secure
• The frame is not bent or damaged
• The guardrails and toeboard are intact
• The gate reaches both fully open and fully closed positions
• The operating area is clear
• There are no pinch-point obstructions
• Safety labels remain visible
• The surrounding guardrail is secure

Do not use the gate if any part is damaged, loose or operating abnormally.

6. What maintenance does the mezzanine floor pallet safety gate require?

Maintenance should include regular cleaning, inspection of pivots and fasteners, lubrication of approved moving points, checking the balance mechanism, inspecting welds and anchors, and confirming smooth operation.

The inspection frequency should be based on operating frequency, environment and the site safety program.

7. Can the gate be customized?

Custom widths, heights, finishes, colors and installation configurations may be evaluated according to the application and order quantity.

Please send the pallet dimensions, load dimensions, platform layout, available overhead clearance, quantity and destination country for engineering review.

8. Is the mezzanine fall protection gate available from European stock?

Selected MG Series products may be available from stock in France for faster delivery to European customers.

Please contact i-Lift to confirm the current model availability, delivery time, freight terms and destination coverage. Current stock should always be confirmed before ordering.

9. What warranty is provided?

The up and over pallet gate is currently offered with a one-year limited warranty.

Warranty coverage is subject to the applicable sales terms and normally excludes incorrect installation, unauthorized modification, misuse, impact damage and normal wear.

10. What information is needed for a quotation?

Please provide:

• Required model or opening width
• Pallet dimensions
• Maximum dimensions of the loaded goods
• Maximum loaded height
• Platform opening width
• Available platform depth
• Available overhead clearance
• Platform or floor material
• Installation photographs or drawings
• Quantity
• Destination country or port
• Required delivery date
• Custom finish or color requirements

This information allows i-Lift to check compatibility and prepare a more accurate quotation.
