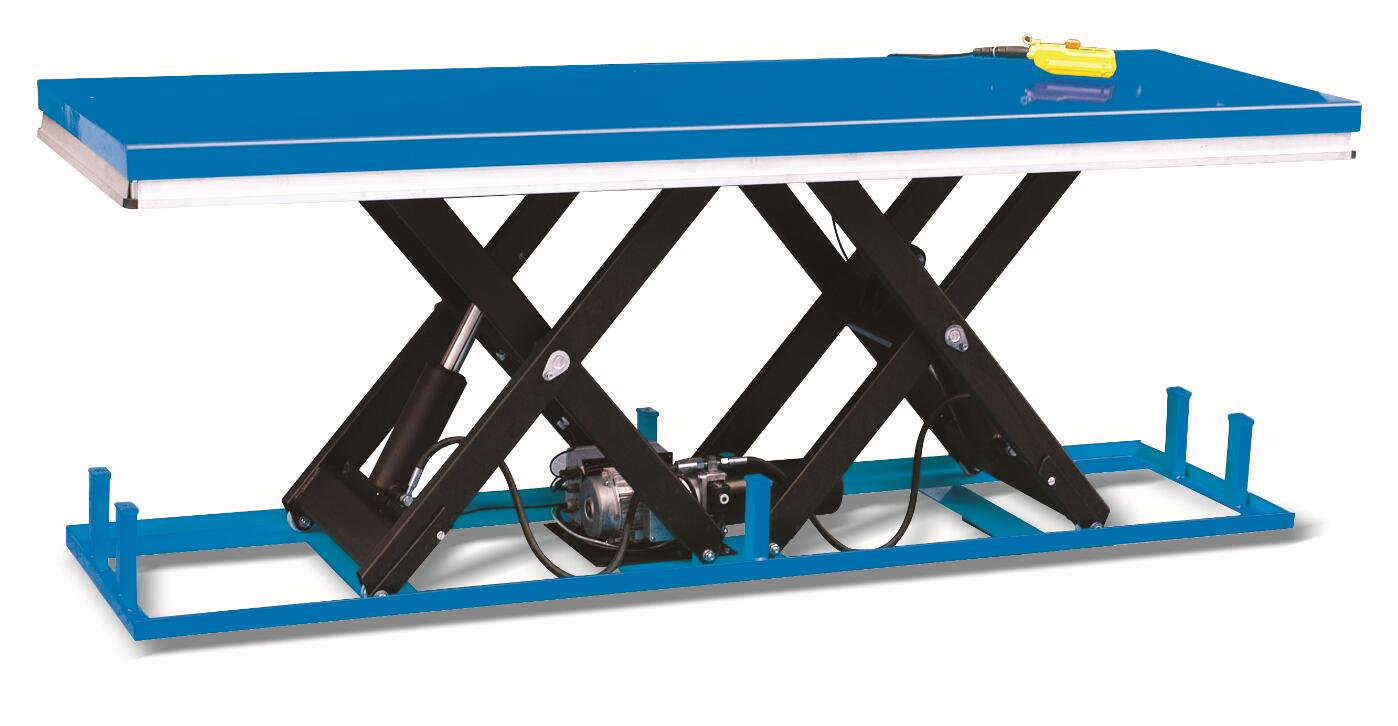

HW D large platform lift table

HW.D series is a large platform lift table with large capacity and heavy load, its heavy duty design and large platform  can be applied to a variety of work scenarios.

▲ Meet EN1570 norm and ANSI/ASME safety standards.

▲ These models can be used in above-floor or in-floor pit applications.



Standard Safety Features of large platform lift table

▲ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

▲ Low-tention (24V) control box with up-down buttons. and compensated flow valve for controlled lowering speed.

▲ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

▲ Safety clearance between scissors to prevent trapping during operation.

Other Standard Features

▲ Self lubricating bushings on pivot points.

▲ Removable lifting eye to facilitable handling and lift table installation.

▲ High quality AC power packs are made in Europe.

i-Lift No.131260113126021312603
ModelHW2000DHW4000DHW8000D
Capacity kg(lb.)2000(4400)4000(8800)8000(17600)
Lowered height mm(in.)205(8.1)230(9)240(9.4)
Raised Height mm(in.)1000(40)1000(40)1050(41.3)
Platform size(L*W) mm(in.)2500*820(100*32.3)2500*850(100*33.5)3000*1200(118*47.2)
Base frame size mm(in.)2460*680(97*26.8)2480*785(97.6*30.9)2990*930(117.7*36.6)
Lift Time(second)15-2530-4055-65
Power Pack380V/50Hz, AC1.1kw380V/50Hz, AC2.2kw380V/50Hz, AC2.2kw
Net Weight kg(lb.)265(583)360(792)705(1551)
