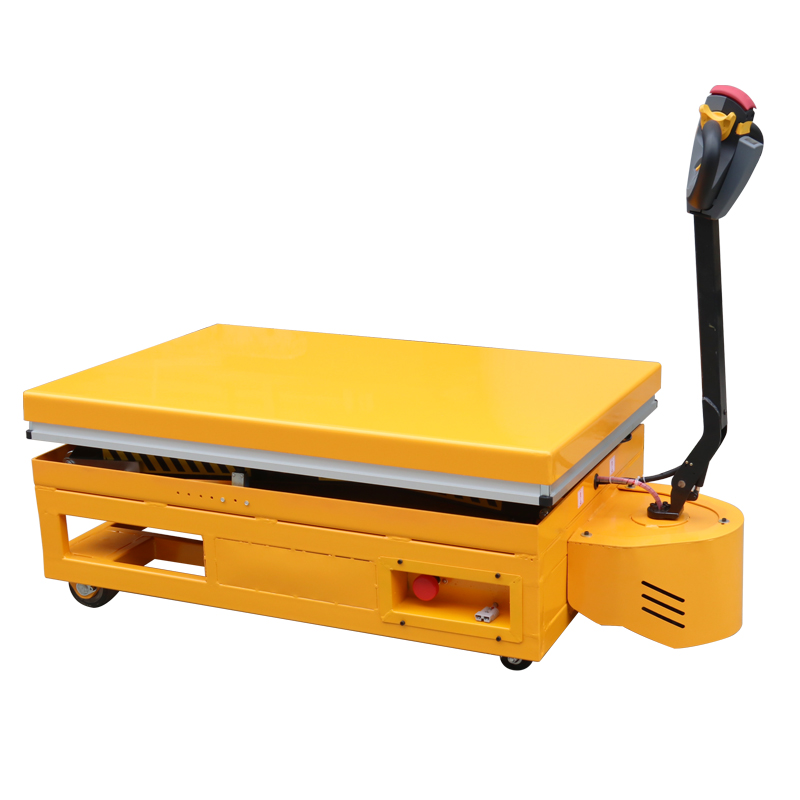

Self-Propelled Lift Table EHW1201

Introduction of Self-Propelled Lift Table

A self-propelled lift table is an advanced material-handling solution designed to lift, transport, and position heavy loads with minimal manual effort. Unlike traditional hydraulic lift tables, a self-propelled model features an integrated electric driving system that allows operators to move the unit freely without pushing or pulling. This significantly enhances workplace efficiency, safety, and productivity in warehouses, factories, assembly lines, and logistics centers.

Engineered with a durable scissor-lift structure and high-capacity battery system, the self-propelled lift table delivers smooth lifting performance, precise height adjustment, and stable load handling. Whether you need to transport materials between production stations, elevate components for assembly work, or support ergonomic handling tasks, this powered lift table ensures optimal workflow and reduced operator fatigue.

Details of Self-Propelled Lift Table

Capacity: 1200Kg
Lifting Height :1300mm
Full electric design,more efficient and labor-saving
Moving by drive wheel ,more powerful to move heavy load.
Conforms to EN1570 norm and ANSI/ASME safety standards.
Customization is acceptable

Specification of Self-Propelled Lift Table

i-lift NO.		1313801
Model		EHW1201
Drive unit		Electric
Operator type		Pedestrian
Capacity	kg(lb.)	1200(2640)
Platform size	mm(in.)	1300x820(51.2x32.3)
Min.Height	mm(in.)	540(21.3)
Max.Height	mm(in.)	1300(51.2)
Turning radius	mm(in.)	1500(59)
Gradeability	%	3/5
Service Brake		Electormagnetic
Tire		Polyurethane
Driving wheel	mm(in.)	Φ200x70(8x2.8)
Drive motor power	KW	0.7
Lifting motor power	KW	2.2
Battery	V/Ah	24/112
Net Weight	kg(lb.)	426(937.2)

Advantages of Self-Propelled Lift Table

1. Self-Propelled Driving System

Equipped with an electric drive motor for effortless movement
No manual pushing required, reducing labor intensity
Improves maneuverability in tight operational spaces

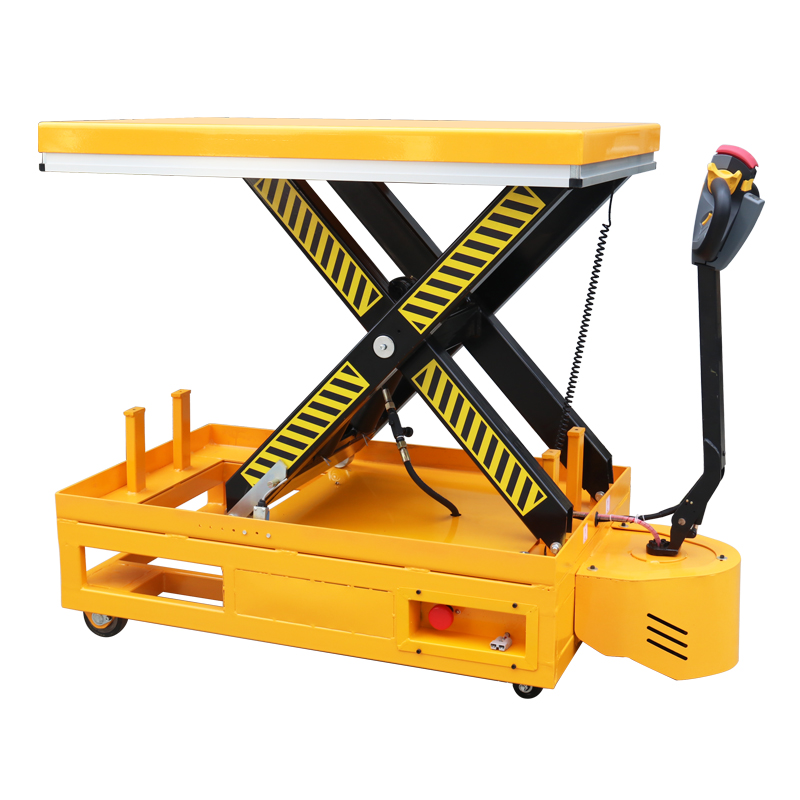

2. Adjustable Scissor Lift Platform

Provides stable vertical lifting
Smooth height adjustment for ergonomic working
Ideal for assembly, positioning, loading, and unloading tasks

3. Enhanced Productivity & Efficiency

Allows one operator to both drive and lift the load
Speeds up internal logistics and material transportation
Reduces downtime during production

4. Improved Workplace Safety

Minimizes the risk of musculoskeletal injuries
Stable platform prevents load shifting
Fitted with safety braking systems and overload protection

5. High-Performance Battery & Low Maintenance

Long-lasting battery supports continuous operation
Low energy consumption and minimal maintenance costs
Suitable for daily industrial use

Application of Self-Propelled Lift Tables

Self-propelled lift tables are widely adopted in environments requiring frequent load transportation and height adjustment:

Manufacturing plants – moving components, assembly support
Warehousing & distribution centers – order picking, goods handling
Automotive industry – parts lifting, assembly lines
Packaging & printing facilities – transferring large materials
Logistics companies – loading/unloading tasks
Maintenance departments – equipment servicing, repair support

Their ability to function as both a mobile lifting table and a powered transport cart makes them extremely versatile for modern industrial operations.
