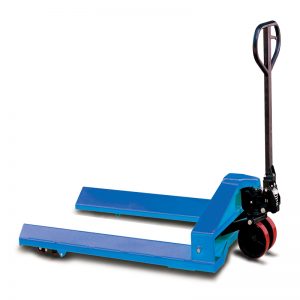

hydraulic roll pallet truck

HR series hydraulic roll pallet truck is designed for roll transporting (handling roll of paper, carpet,textile or other materials). it is like a hydraulic pallet truck as they have the same working principle: ifting by oil pump and manual moving.

This series hydraulic roll pallet jack has 3 different models for rolls with different size.


i-Lift No.111120111112021111203
Capacity kg(lb.)1500(3300)1500(3300)1800(3960)
Min. roll diameter mm(in.)500(20)700(27.6)800(31.5)
Max. roll diameter mm(in.)800(31.5)1300(51.2)1400(55.1)
Max. roll length mm(in.)1500(60)
Fork Overall Width mm(in.)860(33.9)990(39)1030(40.6)
Fork Length mm(in.)1350(53.1)
Rear wheel mm(in.)200(8)
Net Weight kg(lb.)130(286)140(308)155(341)

As a pallet truck manufacture(pallet jack manufacture), i-Lift also have electric pallet truck, high lift scissor pallet truck, rough terrian pallet truck, hand pallet truck(hydraulic pallet truck), low profile pallet truck, stainless pallet truck, galvanized pallet truck, roll pallet truck, pallet truck with scale, skid lifter pallet truck, weighing pallet truck and so on.
