Digital Load Indicators

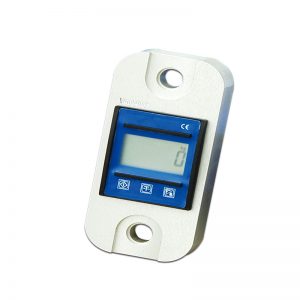

▲ The i-LIFT load indictor is a mechanical measuring instrument with electronic display.

▲ Because of its flexibility the i-LIFT load indictor has universal applications.

▲ Whether used as a conventional crane scale or to measure forces, it is the economical choice for various applications. It can be used in conjunction with shackles and hooks.

▲ The load indictor is provided with liquid crystal display (LCD) which can tare as well as show either the gross or the net load.

▲ It also indicates the overload protection at 110% of the gross weight and the status of the battery.

▲ Conforms to CE safety standard.



i-Lift No.121090112109021210903121090412109051210906
ModelID250ID500ID1000ID2000ID3200ID6400
Max Capacity kg(lb.)250(550)500(1100)1000(2200)2000(4400)3200(7000)6400(14000)
Precision kg(lb.)2(4)4(8)8(16)15(30)25(50)50(100)
Indexing Accuracy kg(lb.)0.5(1)0.9(2)0.9(2)4.5(10)4.5(10)9(20)
Test Capacity kg(lb.)500(1100)1000(2200)2000(4400)4000(8800)6400(14000)12800(28000)
Net Weight kg(lb.)0.5(1)0.6(1.3)0.7(1.5)1(2.3)

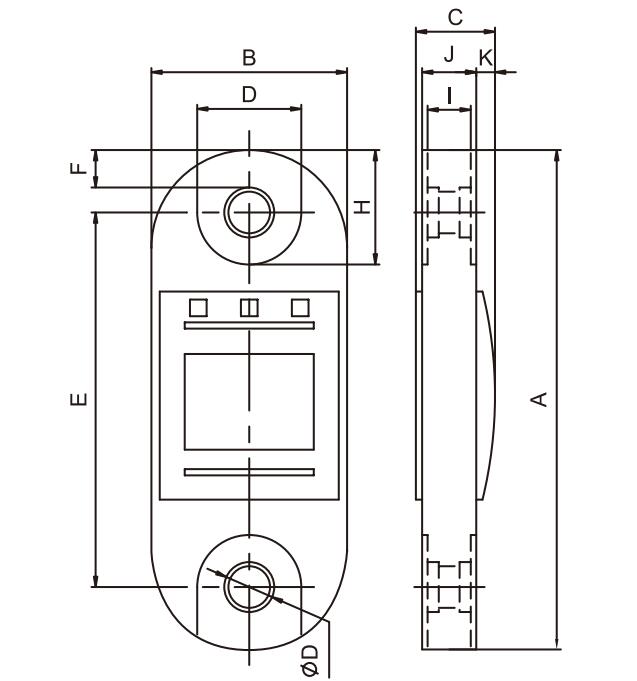

Figure dimension   mm(in.)A220(8.66)233(9.17)234(9.57)274(10.8)
B89.9(3.54)89.9(3.54)96.8(3.81)114.8(4.52)
C41.9(1.65)48(1.89)
D14(0.55)21.8(0.86)21.8(0.86)27.9(1.1)
E195.8(7.71)207(8.15)207(8.15)216.9(8.54)
F11.9(0.47)12.7(0.51)18(0.71)29(1.14)
G31.5(1.38)45(1.77)45(1.77)54.1(2.13)
H36.3(1.43)46.5(1.83)55.9(2.2)69.9(2.75)
I15.7(0.62)25.4(1.0)
J26.9(1.06)33(1.3)
K10.2(0.4)
