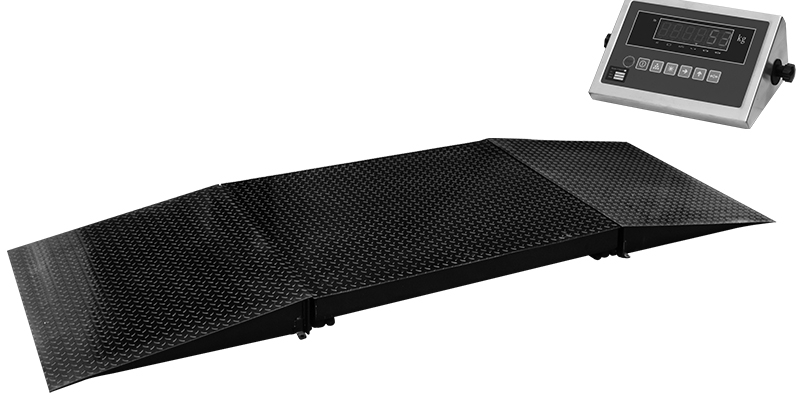

Low Profile Digital Floor Scale

▲ Rugged steel diamond plate surface with heavy duty welded channel support.

▲ Overload protection to 150% of capacity, adjustable leveling feet, can be pit mounted or free standing.

▲ Four alloy tool steel potted load cells.

▲ Durable power coat finish, 6 digit 7 segment display, bi-directional RS232 port, and operator controls for

Zero, Tare, Unit, net/gross and print. Converts to lb. or kg. readout.

▲ Deluxe stainless steel indicator as standard.

▲ Two slopes are optional equipments.

▲ Slopes LE36, LE48, LE60.

                                                      Optional Slope


i-Lift No.12106011210602121060312106041210605
Measuring Range kg(lb.)1000(2200)2000(4400)5000(11000)
Indexing Accuracy kg(lb.)0.2(0.4)0.5(1.1)1(2.2)
Sensor Capacity kg(lb.)1000(2200)2000(4400)2500(5500)
Sensor Number4
Platform Sizemm915*915(36*36)1220*1220(48*48)1500*1500(60*60)1220*1220(48*48)1500*1500(60*60)
Height mm(in.)70(2.8)
Net Weight kg(lb.)75(165)145(319)180(396)160(352)200(440)
Equipment temperature-10℃~+40℃ relative temperature<95%
Sensor temperature-20℃~+60℃
Voltage110V AC (-10%, +10%) 50 Hz
Accuracy class3
