ZFJ20S Mobile weighing cart

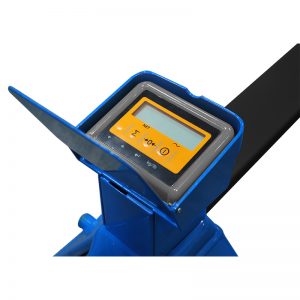

The ZFJ series pallet weighing truck is a Pallet Jack and Scale combination that allows you to weigh the cargo in transit. There is no need to move the load to a platform scale, as this multi-purpose mobile weighing truck allowing you to quickly verify incoming and outgoing freight. Truck displays up to 4400 lb. capacity in 10 lb. increments, and the load cells that are integrated within the forks are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. Large, easy to read LED character display with a membrane keypad provides functions for gross, net, tare, and total. All electronics are shock mounted and contained in a rugged enclosure. Operates on batteries (not included); battery life in continuous use is 75 hours using dry cell alkali or 25 hours using NiCad (nickel cadmium). Scale includes variable automatic shut-off and low battery shutoff. Truck features an easy to operate 3-function hand control (raise/neutral/lower) and a low profile (3.3") lowered fork height. 1 Year Limited Warranty.

▲High accuracy with fixed load cell. Long term reliability from a single circuit board with any extra connectors. Lower energy consumption, auto shut off. Summation of weights with sequence number. Auto tare. Features weighing accuracy ±2kg in 2000kg. 1kg graduation. Small and compact electronics specially developed for mobile weighing. Robust housing protects against impact and vibration.

The mobile weighing truck has model ZFJ20S, ZFJ20L.





i-Lift No.12114011211402
ModelZFJ20SZFJ20L
Capacity kg(lb.)2000(4400)
Max.fork height mm(in.)205 or 195(8.1 or 7.7)
Min.fork height mm(in.)85 or 75(3.3 or 3)
Fork Length mm(in.)1150(45.3)
Individual fork width mm(in.)555(21.9)690(27.2)
Fork overall width mm(in.)180(7.1)
Net Weight kg(lb.)117(257.4)120(264)

Video

Types of mobile weighing pallet cart:

As a weighing truck manufacture, i-Lift also has single sensor scale pallet truck load indicator (SSS25L), high lift scissor truck with scale (HB), pallet truck scale (MW20), mobile weighing cart with Galvanized (ZFG20), mobile weighing cart with stainless #316 (ZFS), mobile floor scale (NC), "U" table scale (ND), low profile floor scale (NA), crane scale (CW)    and so on.

After-sale service:

  1. Each equipment comes with specs instruction
  2. 1 Year Limited Warranty
  3. We have been in manufacturing Pallet Truck Scale for many years. And we have a professional and perfect after-sales service team.

Pallet truck scale manufacturer:

As a professional manufacturer of various types of material handling & lifting products, pallet truck scale is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane, drum handling, forlift attachment, skates, jack, puller, hoist, lifting clamp and so on. If you would like to purchase one type of material handling equipments, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
