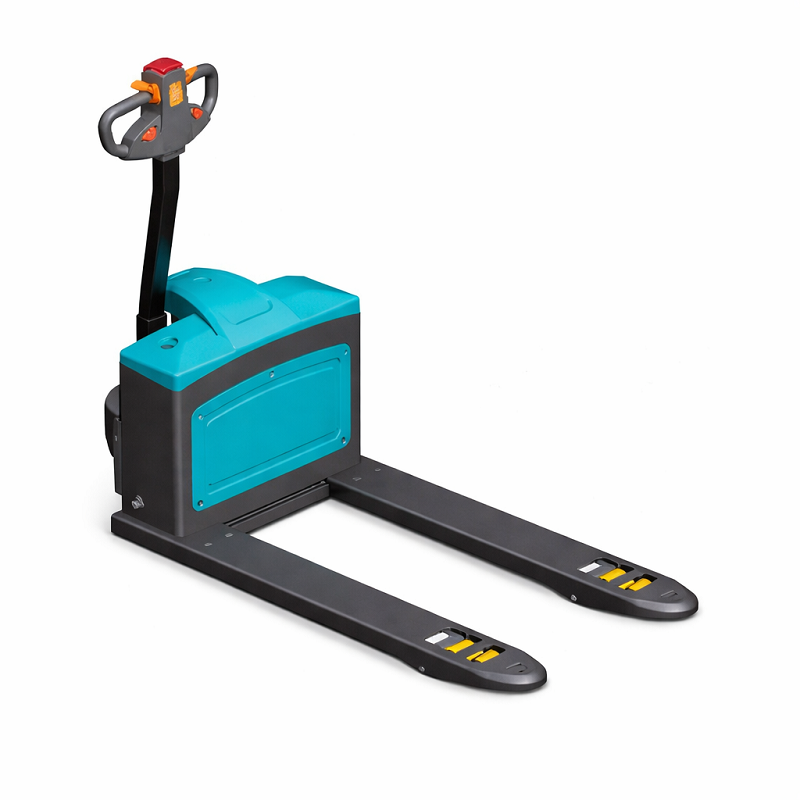

RB15 Electric Pallet Truck

Description of RB15 Electric Pallet Truck

The RB15 Electric Pallet Truck is a compact and efficient material handling solution with a 1,500 kg load capacity. It features a permanent magnet drive motor, stepless speed control, and maintenance-free sealed AGM lead-acid batteries with a built-in charger for easy operation and low maintenance. Its small size makes it ideal for narrow spaces, while safety functions such as an emergency brake and automatic lifting limit ensure reliable and secure performance.

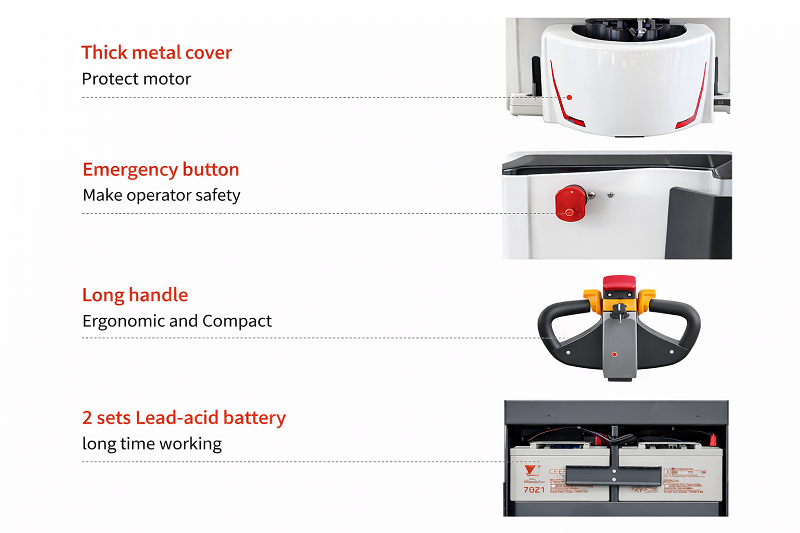

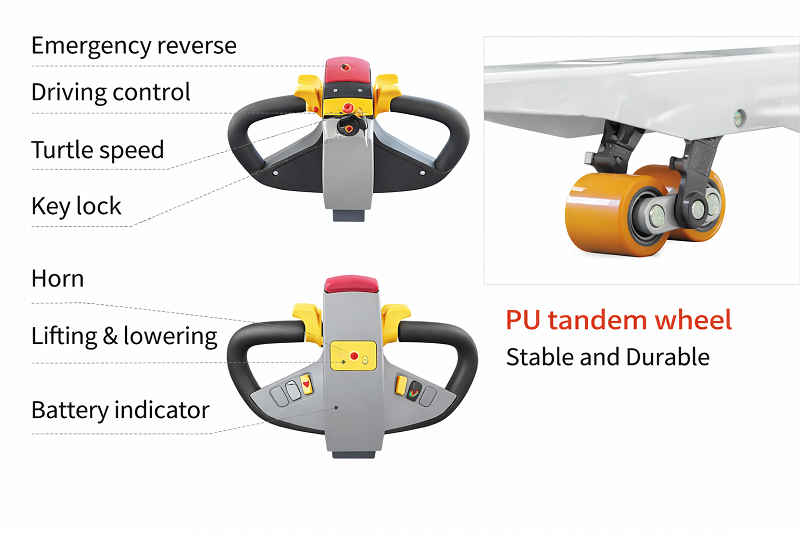

Details of RB15 Electric Pallet Truck

▲ Permanent magnet drive motor, compact structure, easy maintenance.
▲ Stepless speed control system, easy to operate.
▲ Lead-acid Battery open design, easy to replacement.
▲ Built-in charger is standard.
▲ Sealed AGM batteries free of maintenance, safe operation and no pollution.
▲ Small body, suitable for narrow space.
▲ Fork fit for double-deck pallet.
▲ Automatic lifting limit, safety, energy saving.
▲ Emergency reversing device and emergency brake switch.
▲ Low noise, low energy consumption, every day only 2 kW-h.

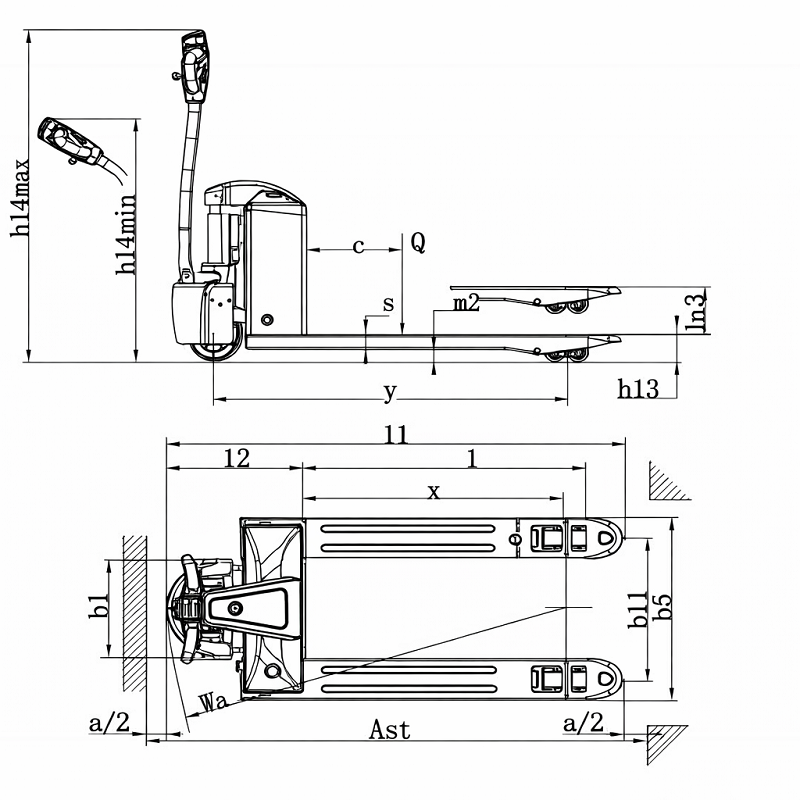

Technical Specification of RB15 Electric Pallet Truck

i-lift No.	Unit	1112701
Model		RB15
Drive unit		Electric
Operator type		Walkie
Capacity	kg (lb.)	1500 (3300)
Load center	mm (in.)	600 (23.6)
Wheelbase	mm (in.)	1301 (51.2)
Wheel material (Driving / balance / front wheel)		PU
Wheel number (Driving / balance / front wheel)	piece	1 / 0 / 2
Driving wheel size	mm (in.)	Ø210×70 (8.3×2.8)
Front wheel size	mm (in.)	Ø74×93 (2.9×3.7)
Min. fork height	mm (in.)	75 / 85 (3.0 / 3.3)
Max. fork height	mm (in.)	185 / 195 (7.3 / 7.7)
Max. lifting height	mm (in.)	110 (4.3)
Outside width between forks	mm (in.)	680 / 560 (26.7 / 22)
Inside width between forks	mm (in.)	360 / 240 (14.2 / 9.4)
Fork length	mm (in.)	1220 / 1150 (48 / 45.3)
Fork width	mm (in.)	160 (6.3)
Fork thickness	mm (in.)	50 (2.0)
Overall length	mm (in.)	1707 (67.2)
Overall width	mm (in.)	680 (26.7)
Overall height	mm (in.)	1210 (47.6)
Aisle width for pallets 1000×1200 crossways	mm (in.)	1884 (74.2)
Aisle width for pallets 800×1200 lengthways	mm (in.)	1934 (76.1)
Turning radius	mm (in.)	1473 (58.0)
Travel speed, with load / without load	km/h	3 / 3.5
Max. gradeability, with load / without load	%	6/10
Service brake		Electromagnetic brake
Drive motor	kW	DC 0.75
Lift motor	kW	DC 0.8
Battery voltage / capacity		2×12V / 70Ah
Battery weight	kg (lb.)	18.8 × 2 (82.9)
Truck weight	kg (lb.)	185 (407)

Main Feature of RB15 Electric Pallet Truck

High strength chassis design
The high strength chassis and compact design ensure the long life and flexibility. Specifically supported by its perfect metal welding and bending technology, and metal toughness as well.

Variety battery capacity available
By pairing battery volumes and its chargers to match various work time demands.

Security and stability
The hydraulic lifting system of this vehicle adopts the design without oil pipe, which greatly improves the reliability of the hydraulic system and reduces the risk of oil leakage of the joint or oil pipe.

Intelligent control system
Equipped with CAN-BUS technology, automatically monitoring the status of the truck, and fault diagnosis.
