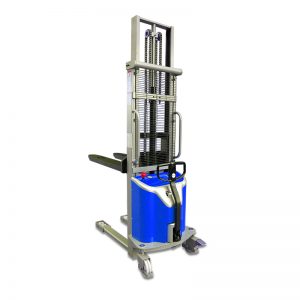

semi-electric lift stacker

MSS series semi-electric lift stacker is designed with heavy duty and top quality mast construction for long service time. Safety guard on load roller and steering wheel to protect workers from induring during working.▲ More power for big cap. Traction battery,▲ More reliable mast steel imported from Germany▲ Professional stacker with attractive outline▲ Optional built in charger.

i-Lift No. 1550111 1550112 1550113 1550114 1550115 1550116
Model MSS1016 MSS1025 MSS1029 MSS1031 MSS1033 MSS1516
Capacity kg(lb.) 1000(2200)
Max. fork height mm(in.) 1600(63) 2500(100) 2900(114.2) 3100(122) 3300(130) 1600(63)
Min. fork height mm(in.) 85(3.3)
Load Centre mm(in.) 600(23.6)
Fork Length mm(in.) 1150(45.3)

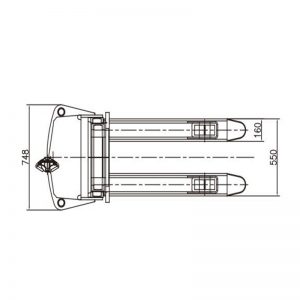

Fork Overall Width mm(in.) 550(21.7)
Single Fork Width mm(in.) 160(6.3)
Lifting Speed With Load mm/s 70 75 75 75 80 75
Without Load mm/s 95 95 100 105 110 95
Lowering Speed With Load mm/s 0~400
Without Load mm/s 0~180
Power Pack KW 1.5
Traction Battery V/Ah 12/100 12/150
Battery Charger V/A 12/18 12/18 12/18 12/20 12/18 12/18
Front wheel size mm(in.) 80*70(3*2.6)
Rear wheel size mm(in.) 180*50(7*2)
Turning Radius mm(in.) 1377(54.2)

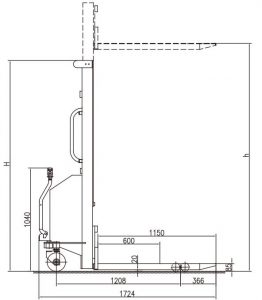

Overall Size(L×W×H) mm(in.) 1724*748*2055 1724*748*1753 1724*748*1953 1724*748*2053 1724*748*2153 1724*748*2055
(67.4*29.5*80.9) (67.4*29.5*69) (67.4*29.5*76.9) (67.4*29.5*80.9) (67.4*29.5*84.8) (67.4*29.5*80.9)
