What Is a Weighing Scale Pallet Truck?

In busy warehouse, logistics, manufacturing, and shipping environments, efficiency matters at every step. Moving palletized goods and verifying their weight are two common daily tasks, but when these operations are handled separately, they can take extra time, labor, and equipment.

A weighing scale pallet truck offers a practical solution by combining a pallet jack and a weighing scale in one unit. Instead of moving goods to a separate platform scale, operators can transport and weigh loads at the same time.

The ZFJ series mobile weighing cart is designed for this exact purpose. It helps users quickly check incoming and outgoing freight, improve workflow efficiency, and reduce unnecessary material handling.

A weighing scale pallet truck, also known as a mobile weighing cart or pallet weighing truck, is a manual pallet jack equipped with an integrated electronic weighing system. Load cells are built into the forks, allowing the truck to measure the weight of palletized cargo while it is being handled.

This type of equipment is especially useful in warehouses and shipping areas where goods need to be moved and weighed frequently. With one machine, operators can lift, move, and weigh loads without transferring them to a fixed floor scale or platform scale.

The ZFJ series pallet weighing truck provides a capacity of up to 2000 kg / 4400 lb, making it suitable for a wide range of industrial and logistics applications.

Why Use a Mobile Weighing Cart?

Traditional weighing methods often require a separate platform scale. This means the operator must move the pallet to the scale, position it correctly, wait for the reading, and then move it again. For high-volume operations, this process can become time-consuming.

A mobile weighing cart simplifies the process. It allows users to verify cargo weight during transport, helping improve productivity and reduce repeated handling.

This makes the equipment ideal for:

Incoming goods inspection
Outgoing freight verification
Warehouse inventory control
Production line material handling
Logistics and distribution centers
Shipping and receiving departments
Palletized goods weighing

By combining weighing and transport into one step, the ZFJ series helps warehouses work faster and more efficiently.

Key Features of the ZFJ Series Weighing Scale Pallet Truck

The ZFJ series is built for reliable daily use in industrial environments. It includes a compact electronic weighing system, durable truck structure, and easy-to-use controls.

1. Pallet Jack and Scale Combination

The main advantage of the ZFJ series is its two-in-one design. It works as both a pallet truck and a weighing scale, allowing operators to move and weigh loads with a single piece of equipment.

This helps reduce the need for separate weighing stations and saves valuable warehouse space.

2. High Accuracy Weighing Performance

The truck uses fixed load cells integrated within the forks to provide stable and accurate weight readings. With weighing accuracy of ±2 kg at 2000 kg and 1 kg graduation, it is suitable for general warehouse, logistics, and industrial weighing tasks.

3. Easy-to-Read LED Display

The weighing system is equipped with a large LED display, making weight readings clear and easy to read during operation. A membrane keypad provides convenient access to common weighing functions.

The display supports functions such as:

Gross weight
Net weight
Tare
Total weight accumulation
Auto tare
Weight summation with sequence number

These functions help operators manage multiple weighing tasks more efficiently.

4. Durable Electronic Housing

Warehouse environments can be tough on equipment. The ZFJ series is designed with shock-mounted electronics contained in a rugged housing. This helps protect the weighing components against impact and vibration during daily use.

The compact electronics are specially developed for mobile weighing applications, helping ensure reliable performance while the truck is moving through warehouse and logistics environments.

5. Energy-Saving Operation

The scale operates on batteries and is designed for low energy consumption. In continuous use, battery life can reach approximately 75 hours with alkaline dry-cell batteries or around 25 hours with Ni-Cd batteries.

The scale also includes automatic shut-off and low-battery shutoff functions to help extend battery life and protect the electronic system.

6. Easy Manual Operation

The ZFJ series features a simple 3-function hand control for raising, neutral, and lowering. This makes operation familiar and convenient for users who already work with standard manual pallet trucks.

With a low-profile fork height of 85 mm / 3.3 in, the truck can easily enter standard pallets and handle common warehouse applications.

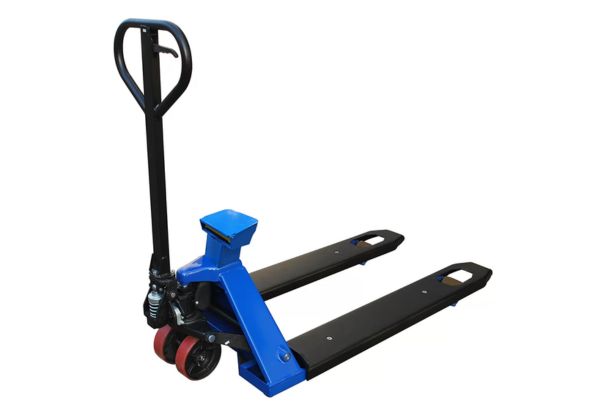

Available Models: ZFJ20S and ZFJ20L

The ZFJ series mobile weighing truck is available in two models: ZFJ20S and ZFJ20L. Both models have a capacity of 2000 kg / 4400 lb and a fork length of 1150 mm / 45.3 in.

The main difference between the two models is the fork overall width:

ZFJ20S: 555 mm / 21.9 in fork overall width
ZFJ20L: 690 mm / 27.2 in fork overall width

This gives users the flexibility to choose the model that best matches their pallet size and handling requirements.

Benefits for Warehouse and Logistics Operations

A weighing scale pallet truck is a practical investment for companies that need to move and weigh palletized goods regularly. It improves handling efficiency by eliminating unnecessary steps and reducing reliance on fixed platform scales.

Key benefits include:

Faster freight verification
Reduced manual handling
Improved warehouse productivity
Space-saving mobile design
Convenient weighing during transport
Better control of incoming and outgoing goods
Suitable for daily industrial use

For warehouses that handle frequent shipments, a mobile weighing cart can help streamline operations and improve accuracy in load checking.

Conclusion

A weighing scale pallet truck is an efficient warehouse solution for moving and weighing loads in one step. By combining the functions of a pallet jack and an electronic scale, it helps reduce extra handling, save time, and improve operational efficiency.

The ZFJ20S and ZFJ20L mobile weighing carts are designed for industrial, warehouse, logistics, and shipping applications. With 2000 kg / 4400 lb capacity, integrated fork load cells, LED display, tare and total functions, durable electronic housing, and easy manual operation, the ZFJ series provides a practical and reliable solution for everyday pallet weighing tasks.

For businesses looking to improve warehouse efficiency and simplify freight weight verification, the ZFJ series weighing scale pallet truck is a smart and effective choice.
