QES Series Electric Stacker

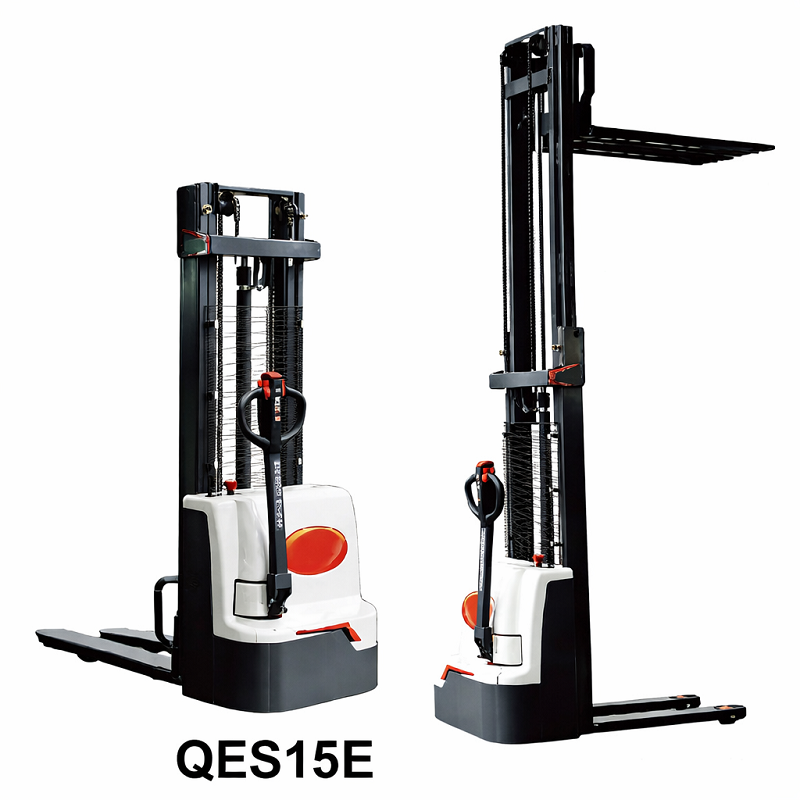

Description of QES Series Electric Stacker

The QES Series is an economical long -tiller pallet stacker, with the rated load capacity of 1200kg to 2000kg, lifting height from 1600mm to 4000mm, it meets customers' demands for increasing economic performance, handling efficiency and safety.

High maneuverable, economical and practical design, it can fully meets customers' demands.
With compact design it's turning radius is smaller than conventional stackers, which is more suitable for small stacking warehouse operation.Long-tiller design meets the requirements of ergonomics and safety Long tiller stacker uses less operating force, compared with the short tiller stacker.

Long tiller design ensure the operators high efficiency and safe distance from stacker -body.
Height is adjustable according to operators operating habits and height preference.
4-wheel design with side ways long-tiller gives operators a better view to the pallet.
The safety distance and good view makes stacking operation more efficient and faster.

Details of QES Series Electric Stacker

▲ Compact design, designed with long handle;
▲ Short turning radius;
▲ Powered by Lithium battery;
▲ Suitable for small warehouse operations.
▲ QES12E, QES15E & QES20E Optional

Specification of QES Series Electric Stacker

i-lift No.	Unit	1552701	1552702	1552703
Model		QES12E	QES15E	QES20E
Type		Electric
Capacity	kg (lb.)	1200 (2640)	1500 (3300)	2000 (4400)
Load center	mm (in.)	600 (23.6)
Front wheel size	mm (in.)	Ø80×70 (3.1×2.8)
Rear wheel size	mm (in.)	Ø150×50 (5.9×2)
Driving wheel size	mm (in.)	Ø210×70 (8.3×2.8)
Rear wheel distance	mm (in.)	540 (21.2)
Wheel base	mm (in.)	1260 (49.6)
Lifting height	mm (in.)	1600 / 2000 / 2500 / 3000 / 3300 (63 / 78.7 / 98.4 / 118.1 / 130 / 137.8 / 157.5)
Height when mast lowered	mm (in.)	2080 / 1530 / 1780 / 2012 / 1702 / 2265 / 2515 (81.9 / 60.2 / 70.1 / 79.2 / 67.1 / 89.2 / 99.0)
Height of handle from ground	mm (in.)	1450 (57.1)
Max. height of the whole vehicle during operation	mm (in.)	2080 / 2490 / 2990 / 3490 / 3790 / 3990 (81.9 / 98.1 / 117.7 / 137.4 / 149.2 / 157.1 / 176.8)
Min. fork height	mm (in.)	90 (3.5)
Overall length	mm (in.)	1740 (68.5)
Overall width	mm (in.)	800 (31.5)
Fork dimensions (s×e×l)	mm (in.)	55 / 160 / 1070 (2.16 / 6.3 / 42.1)
Overall fork width	mm (in.)	560 / 685 (22 / 27)
Min. ground clearance	mm (in.)	30 (1.2)
Aisle width for pallets 1000×1200 crossways	mm (in.)	2230 (87.8)
Aisle width for pallets 800×1200 crossways	mm (in.)	2305 (90.7)
Turning radius	mm (in.)	1600 (63)
Travel speed, laden / unladen	km/h	4 / 4.3
Lift speed, laden / unladen	mm/s	80 / 120
Lowering speed, laden / unladen	mm/s	120 / 100
Climbing capability, laden / unladen	%	5/8
Driving brake		Electromagnetic
Drive motor power	kW	0.75
Lift motor power	kW	2.2
Battery voltage / rated capacity	V / Ah	24 / 80 (100)
Battery weight	kg (lb.)	2 × 25
Steering mode		Mechanical steering
Net weight with battery	kg (lb.)	450 / 500 / 518 / 545 / 557 / 572 / 596 (990 / 1100 / 1139.8 / 1199 / 1225.4 / 1256.2 / 1311.2)

Main Feature of QES Series Electric Stacker

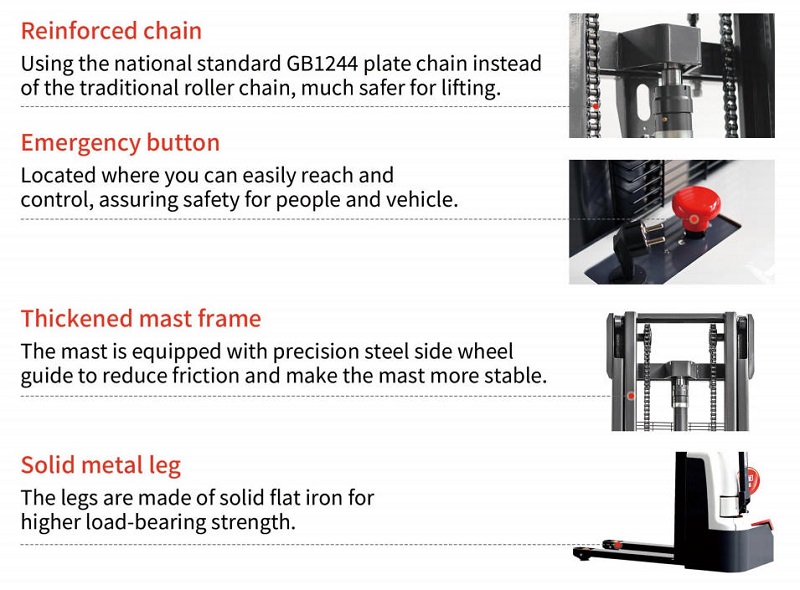

High strength chassis design
The high strength chassis and compact design ensure the long life and flexibility. Specifically supported by its perfect metal welding and bending technology, and metal toughness as well.

Variety battery capacity available
By pairing battery volumes and its chargers to match various work time demands.

Security and stability
The hydraulic lifting system of this vehicle adopts the design without oil pipe, which greatly improves the reliability of the hydraulic system and reduces the risk of oil leakage of the joint or oil pipe.

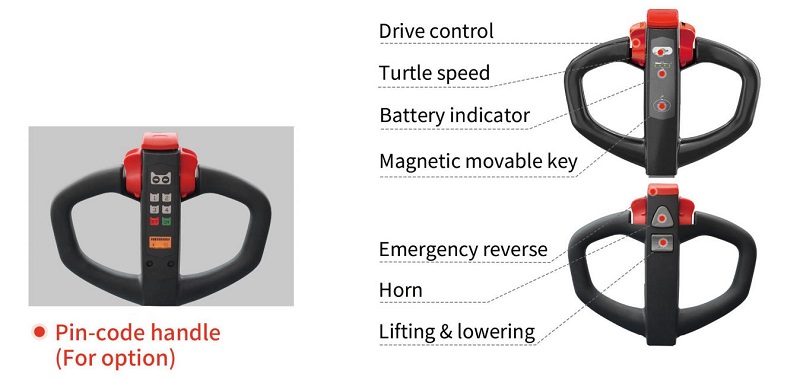

Intelligent control system
Equipped with CAN-BUS technology, automatically monitoring the status of the truck, and fault diagnosis.
