HE Series “E” Low Profile Lift Tables

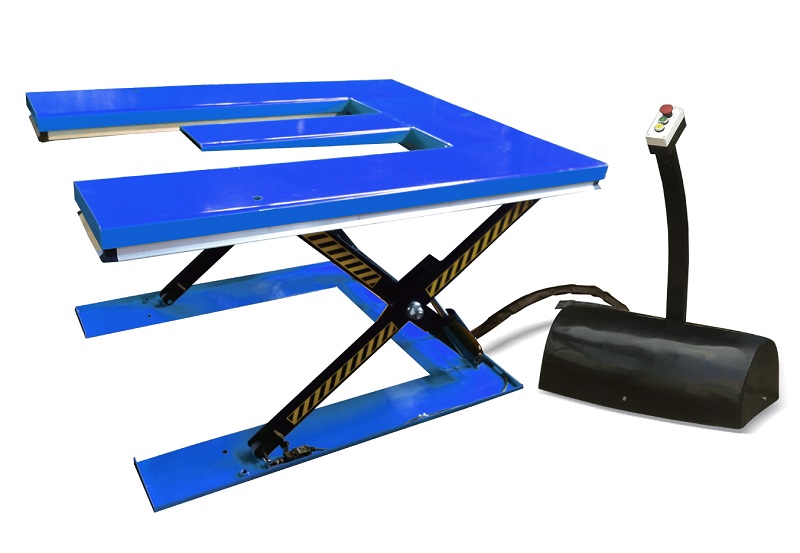

Description of “E” Low Profile Lift Table

The HE Series “E” Low Profile Lift Tables are designed with a low closed height, eliminating the need for pit installation and allowing easy surface mounting. Manufactured in accordance with EN1570:1999 European safety standards, they feature a remote power pack with IP54 protection, 24V push-button controls with emergency stop, and a hose burst safety valve for secure operation. The external power pack includes overload and flow control valves to ensure smooth and controlled lifting and lowering, making the HE series a reliable solution for material handling applications requiring safety, stability, and efficiency.

Features of “E” Low Profile Lift Table

These tables achieve a low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570:1999.
Remote power pack with pedestal and controls, IP54 protection.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply AC 380V/50HZ/3phase.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.

Specification of “E” Low Profile Lift Table

i-Lift No.	1313501	1313502	1313503	1313504
Model	HE500	HE1000	HE1500	HE2000
Capacity kg(lb.)	500 (1100)	1000 (2200)	1500 (3300)	2000 (4400)
Platform Size L×W (mm/in.)	1400×1200 (55×47.2)	1400×1200 (55×47.2)	1500×1300 (60×51.2)	1500×1300 (60×51.2)
Min. Height (mm/in.)	85 (3.3)	85 (3.3)	100 (4)	100 (4)
Max. Height (mm/in.)	885 (33.7)	885 (33.7)	820 (32.3)	820 (32.3)
Stroke (mm/in.)	800 (31.5)	800 (31.5)	720 (28.3)	720 (28.3)
Lifting Time (second)	25–30	25–30	30–40	30–40
Power Pack	380V/50HZ, 0.75KW	380V/50HZ, 1.1KW	380V/50HZ, 2.2KW	380V/50HZ, 2.2KW
Net Weight kg(lb.)	207 (455.4)	280 (616)	380 (836)	500 (1100)

Advantages of “E” Low Profile Lift Tables

Low Closed Height Design – No pit installation required, allowing quick and cost-effective surface mounting.
High Safety Standard – Manufactured in compliance with EN1570:1999 European safety regulations.
Safe & Reliable Operation – Equipped with 24V control system, emergency stop, and hose burst safety valve.
Smooth & Controlled Movement – Relief and compensated flow valves ensure stable lifting and lowering speeds.
Durable Power System – External power pack with IP54 protection, suitable for industrial environments.
Wide Load Range – Multiple capacity options to meet different material handling requirements.
Easy Operation & Maintenance – Remote power pack and simple push-button controls improve usability and serviceability.
