HD1000 Stationary scissor lift table, electric hydraulic lift table, material handling&lifting equipment

What is stationary scissor lift table?

i-Lift stationary scissor lift table capacity from 400 to 4000kg, max lifting height can reach 4210mm(165.7inch). Scissor design adds stability.

High-quality pumping station makes the lifting of the goods stable and powerful, and the safety bar device is arranged below the tabletop, when it encounters obstacles below the tabletop, it stops to descend to ensure safety. With overload protection function, more reliable. The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling rapidly when the oil pipe bursts.

i-Lift stationary hydraulic scissor lift tables are designed for lifting and positioning heavy materials at fixed workstations, production lines, warehouses and industrial facilities. An electric motor powers the hydraulic system, allowing loads to be raised and lowered without manual pumping.

The HD, HT and HF Series are available in double, triple and quadruple-scissor configurations, providing different combinations of load capacity and lifting height for industrial material-handling applications.

The double scissor of the stationary lift table has models HD1000, HD2000, HD4000 with max. lift height 2m

The triple scissor of the stationary lift table has models HT1000, HT2000, HT4000 with max. lift height 3m

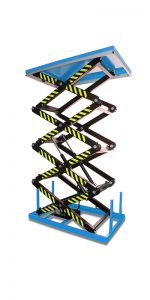

The quadruple scissor of the stationary lift table has models HF400, HF800,HF1600 with max. lift height 4m

Widely used in pharmaceutical, catering, packing line, food processing, warehouse, office, kitchens, laboratories, retail outlets, etc... Feel free to send us email to tell us more about your requirements; we will reply you in 24 hours.

Please check“stationary lift table” if you need other size.

Specifications of stationary scissor lift table

i-Lift No.		1312101	1312102	1312103	1312201	1312202	1312203	1316001	1316002	1316003
Model		HD1000	HD2000	HD4000	HT1000	HT2000	HT4000	HF400	HF800	HF1600
Capacity	kg(lb.)	1000(2200)	2000(4400)	4000(8800)	1000(2200)	2000(4400)	4000(8800)	400(880)	800（1760）	1600（3520）
Lowered height	mm(in.)	305（12）	360（14.2）	400（15.7）	470（18.5）	560（22）	625（24.6）	600（23.6）	710（28）	800（31.5）
Raised Height	mm(in.)	1780（70）		2050（80.7）	3000（118）		3200（126）	4140（163）	4200（165.3）	4250（167.3）
Platform Size	mm(in.)	820*1300	850*1300	1700*1200	1700*1000		1700*1200	1700*1000		1700*1200
Platform Size	mm(in.)	（32.5*51.2）	（33.5*51.2）	(67*47.2)	(67*40)		(67*47.2)	(67*40)		(67*47.2)
Base frame size	mm(in.)	640*1240	785*1220	1600*900	1600*1000	1606*1010	1610*1140	1600*1000	1606*1010	1610*1140
Base frame size	mm(in.)	(25.2*48.8)	(31*48)	(63*35.4)	(63*40)	(63*40)	(63.4*44.9)	(63*40)	(63*40)	(63.4*44.9)
Lift Time	s	35-45		55-65	35-45	50-60	50-65	30-40	70-80	50-65
Power Pack		380V/50Hz, AC1.1kw					380V/50Hz, AC4kw	380V/50Hz, AC1.1kw		380V/50Hz, AC4kw
Net Weight	kg(lb.)	210(462)	295(649)	520(1144)	450(990)	750(1650)	910(2002)	548(1205.6)	858(1887.6)	1045(2299)

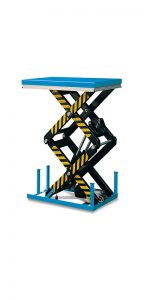

Double Scissor Lift Table

A double scissor lift table uses two vertically stacked scissor mechanisms to achieve a higher raised position than a typical single-scissor table while maintaining a relatively compact footprint.

The i-Lift HD Series electric double scissor lift tables are designed for fixed industrial lifting and work-positioning applications where greater vertical travel is required.

How Does an Electric Hydraulic Double Scissor Lift Table Work?

An electric hydraulic double scissor lift table combines an electric motor with a hydraulic lifting system. The motor powers the hydraulic pump, which supplies pressurized oil to the lifting cylinders and raises the scissor structure.

This powered design is particularly suitable for repetitive material lifting and work positioning because the operator can raise or lower the platform without manually pumping the hydraulic system.

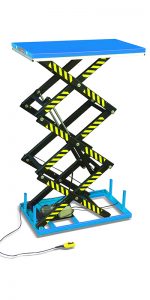

Triple Scissor Lift Tables for Higher Vertical Reach

When the required lifting height exceeds the practical range of a double-scissor design, a triple scissor lift table provides additional vertical travel by using three stacked scissor sections.

The i-Lift HT Series is designed for stationary industrial applications requiring greater lifting height while maintaining a compact floor footprint. Available models provide different load capacities to suit material positioning, production and vertical-transfer requirements.

When Should You Choose a Triple Scissor Lift Table?

Required lifting height is greater than a double-scissor model can provide.
Floor space is limited relative to the required vertical travel.
Loads need to be positioned at elevated work levels.
The lift will remain at a fixed industrial workstation or material-transfer location.

When Should You Choose a Stationary Scissor Lift Table?

A stationary lift table is designed for applications where materials are repeatedly raised and lowered at the same workstation or transfer point.

Compared with a mobile lift table, a stationary scissor lift table is better suited to permanent or semi-permanent industrial applications such as:

Production and assembly workstations
Packaging and processing lines
Material transfer between different working heights
Loading and unloading operations
Maintenance and inspection stations
Warehouse material positioning

An electric stationary lift table is particularly useful for repetitive lifting cycles because loads can be positioned without manual hydraulic pumping.

Stationary vs Mobile Lift Table

	Stationary Lift Table	Mobile Lift Table
Main purpose	Repetitive lifting at a fixed location	Moving + lifting loads
Mobility	Fixed work area	Equipped with wheels/casters
Typical application	Production line, workstation, material transfer	Warehouse transport
Higher lifting configurations	Double/triple/quadruple available	Usually more limited
Best choice when	Load moves vertically at one location	Load must travel between locations
