What is Electric Rotating Scissor Lift Table?？

A rotating scissor lift table combines vertical hydraulic lifting with a rotating top platform. The scissor mechanism raises or lowers the load to the required working height, while the turntable allows the pallet or workpiece to rotate for easier access from different sides.

The i-Lift HRL Series rotating lift table is designed for stationary industrial applications including pallet handling, packaging, assembly, production and work positioning. HRL1000 and HRL2000 provide rated capacities of 1,000 kg and 2,000 kg respectively.

Why Use a Pallet Rotating Table?

Bring the Load Closer to the Operator

Rotate the pallet instead of repeatedly reaching across the far side of the load.

Reduce Walking Around the Pallet

The rotating top allows different sides of the load to be brought toward the operator's working position.

Adjust Both Height and Orientation

Unlike a stand-alone pallet turntable, the HRL Series can also raise or lower the pallet to suit the required working height.

This combination makes the HRL Series particularly useful as a pallet rotating table for repetitive palletizing, depalletizing, packaging and material-positioning tasks.

Rotating Lift Table vs Pallet Turntable

	HRL Rotating Lift Table	Stand-Alone Pallet Turntable
Raise/lower load	Yes	No
Rotate load	Yes	Yes
Working height adjustment	Yes	Fixed
Scissor lift mechanism	Yes	Usually no
Best for	Pallet positioning + rotation	Rotation only

If the application requires both vertical positioning and pallet rotation, a rotating pallet lift table provides both functions in one workstation. If the load only needs to rotate at a fixed height, a stand-alone turntable may be sufficient.

option:hand contral or foot control for Electric lift table with manual rotating

The stationary lift table with a carousel turntable is extra wide at the pivot point. Its contoured logs combine great strength with lower collapsed height. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free bushings.

The electric rotating scissor lift table has models HRL1000, HRL2000 with capacity 1ton, 2ton.

▲ i-Lift heavy-gauge steel carousel turntable helps rotate pallets to facilitate stretch wrapping.

▲Improve employee safety by accurately lifting loads to a comfortable working height.

▲Help to increase productivity while helping to reduce injuries due to bending and reaching.

▲Hand or foot contral for option.

▲This model can be used in above-floor or in-floor pit applications.

option:hand control with electric lift & rotate function

How Does a Lift and Rotate Table Work?

1. Raise the Load

The electric hydraulic lifting system raises the pallet or workpiece to the required working height.

2. Rotate the Load

The rotating platform allows the operator to turn the load and bring the required side closer to the workstation.

3. Reposition as the Work Changes

The operator can adjust the lifting height and load orientation according to the packing, assembly or handling task.

By combining vertical positioning and rotation, the HRL Series works as a lift and rotate table or lift and turn table for repetitive industrial material-handling applications.

Manual vs Electric Rotation — Which Should You Choose?

	Manual Rotation	Electric Rotation
Load rotation	Operator turns platform	Powered rotation
Best for	Lower rotation frequency	Repetitive rotation
Operator effort	Higher	Lower
Control	Manual	Hand controller
Lift function	Electric hydraulic	Electric hydraulic

Choose Manual Rotation When

Rotation frequency is relatively low.
Operators only need occasional pallet access from different sides.
A simpler configuration is preferred.

Choose Electric Rotation When

Loads are rotated frequently.
Repetitive packing or assembly is involved.
Reduced manual turning effort is important.

Specification of rotating pallet lift tables

i-lift No.		1313605	1313606
Model		HRL1000	HRL2000
Capacity	kg(lb.)	1000(2200)	2000(4400)
Min.height	mm(in.)	330(13)
Max.height	mm(in.)	710(28)
Rotating ring,outside dia.	mm(in.)	1150(45.3)
Base frame length	mm(in.)	930(36.6)
Base frame width	mm(in.)	920(36.2)
Net Weight	kg(lb.)	208(457.6)	217(477.4)

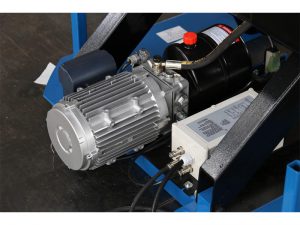

Power Pack		380V/1.1kw	380V/2.2kw
Option	Lifting Mode	Hand Control/Foot Control
Option	Rotating Mode	Hand/Electric

Typical Applications for Rotating Pallet Lift Tables

Palletizing & Depalletizing

Raise or lower palletized loads and rotate them to provide better access to different sides.

Stretch Wrapping

Rotate pallets during manual stretch-wrapping operations while adjusting the load to a suitable working height.

Packaging

Rotate cartons or palletized products toward the operator during repetitive packing tasks.

Assembly & Manufacturing

Position larger components at the required height and orientation.

Inspection

Turn the workpiece to access different sides without repeatedly repositioning the operator.

Material Transfer / Work Positioning

Adjust both height and orientation before the next operation.

FAQ

1. Does the HRL Series support full electric rotation?

Yes. The HRL Series features full electric rotation with 360-degree continuous turning, controlled by a hand control. The heavy-duty carousel turntable rotates smoothly and safely, even under full load.

2. How are lifting and rotating functions controlled?

The HRL Series offers flexible control options:

Hand control for electric lifting

Hand control for electric rotating

Foot control (optional) for lifting

Control modes can be configured according to operator preference and application requirements.

3. What industries and applications are suitable for the HRL Series?

HRL Series Full Electric Rotating Lift Tables are widely used in:
