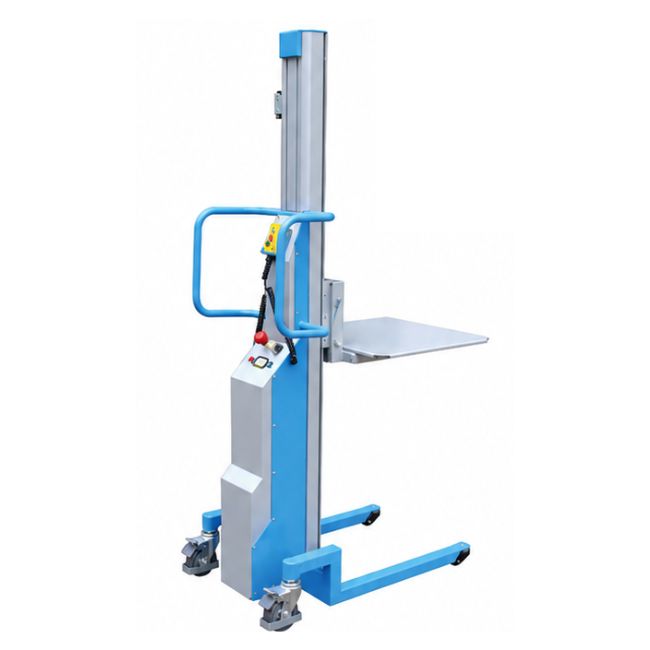

E500 Semi-Electric Work Positioner

What is E500 Semi-Electric Work Positioner?

The E500 Semi-Electric Work Positioner is a compact and easy-to-operate lifting solution designed for efficient material handling in industrial, laboratory, office, and clean working environments. With its mini structure and user-friendly design, it is ideal for lifting, positioning, and transporting goods in narrow or limited spaces.

Equipped with a high-performance lift motor, the E500 delivers stable operation, high efficiency, and long service life. The platform design makes it suitable for a wide range of handling tasks, while the optional fork attachment provides additional flexibility for different applications.

The E500 series is available in multiple lift height options, with a rated capacity of 500 kg / 1100 lb. It is powered by a 48V/20Ah maintenance-free battery, ensuring reliable performance for daily use.

Features of E500 Semi-Electric Work Positioner

With compact stucture and mini shape. Simple and easy to use;
High performance hoist motor: high efficiency, stability and long working life.
The excellent work transporter for Industrial, Laboratory, Office and “White Coat” industrial applications.
Conforms to EN1757-1 and EN1175-1

Specification of E500 Semi-Electric Work Positioner

Model		E500	E500-1.6	E500-1.1
Capacity	kg(lb.)	500(1100)	500(1100)	500(1100)
Load Center	mm(in.)	200(8)	200(8)	200(8)
Max. Lift Height	mm(in.)	1650(65)	1600(63)	1100(43.3)
Min. Lift Height	mm(in.)	130(5.1)	100(4)	100(4)
Leg Height	mm(in.)	85(3.3)	80(3.1)	80(3.1)
Platform Size	mm(in.)	505x605(19.9x23.8)	505x605(19.9x23.8)	505x605(19.9x23.8)
Overall Length	mm(in.)	1000(39)	1000(39)	1000(39)
Overall Width	mm(in.)	610(24)	610(24)	610(24)
Overall Height	mm(in.)	2100(82.7)	2000(78.7)	1550(61)
Load Wheel	mm(in.)	Φ75x47(2.9x1.9)	Φ50x30(2x1.2)	Φ50x30(2x1.2)
Steering Wheel	mm(in.)	Φ150x40(5.9x1.6)	Φ150x40(5.9x1.6)	Φ150x40(5.9x1.6)
Battery, Service Free		48V/20Ah	48V/20Ah	48V/20Ah
Net Weight	kg(lb.)	152(334.4)	150(330)	145(319)
