When Do You Need a U-Shape Low Profile Lift Table?

In many warehouses, factories, and logistics centers, pallet trucks (also called pallet jacks) are the most common tools for moving palletized goods. They are simple, affordable, and easy to operate. However, while pallet trucks are excellent for horizontal transport, they are not designed to provide an ergonomic working height for loading, packing, or processing goods.

This is where a U-Shape Low Profile Stationary Lift Table becomes essential.

If your daily operations rely on pallet trucks to move loads, and your team needs to work directly on pallets at a fixed station, a U-shape lift table is often the most practical and efficient solution.

Designed Specifically for Pallet Truck Loading

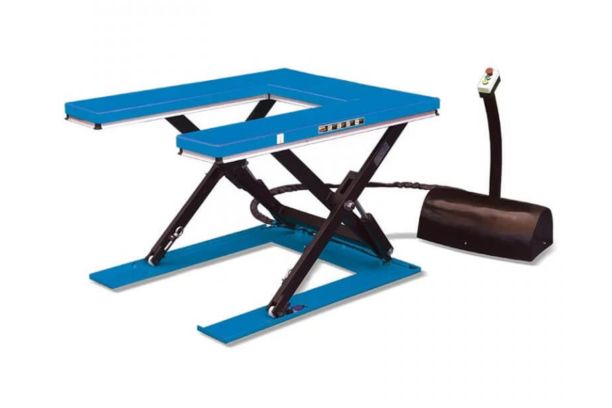

Unlike standard lift tables, a U-shape stationary lift table features a special U-shaped platform opening. This opening allows a pallet truck to drive straight into the platform, place the pallet on the table, and then exit easily.

This design eliminates the need for:

Loading ramps
Floor pits
Forklifts for positioning pallets

With a U-shape lift table, the workflow remains simple:

The pallet truck approaches the lift table
The forks pass through the U-shaped opening
The pallet is set down on the platform
The pallet truck drives out
The lift table raises the load to the desired working height

This makes U-shape lift tables ideal for facilities where pallet trucks are already the main handling equipment.

Why Pallet Truck Compatibility Matters

Pallet trucks are widely used because they:

Require minimal training
Work well in narrow aisles
Are cost-effective
Do not require special licenses
Handle most standard pallets

A U-shape low profile stationary lift table is built to fit into this existing workflow without forcing companies to change their equipment or processes.

Instead of switching to forklifts or installing complex lifting systems, businesses can simply add a U-shape lift table and continue using pallet trucks as usual.

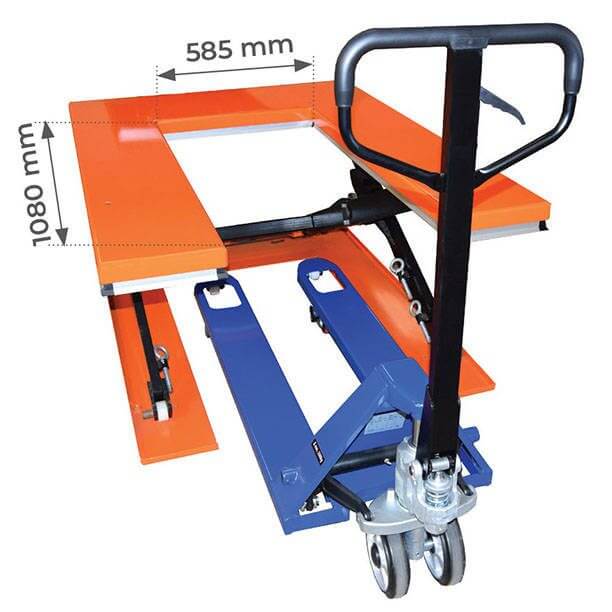

Pallet Truck vs. U-shape Low Profile Lift Table – Dimension Matching Table

Pallet Truck Parameter	Corresponding Lift Table Parameter	Matching Requirement
Fork Overall Width	U-opening Inner Width	Fork overall width ≤ U-shape opening inner width
Single Fork Width	Platform Side Clearance	Single fork width ≤ available side clearance
Fork Thickness	Minimum Lowered Height	Fork thickness < minimum lowered height
Fork Inner Distance	U-opening Inner Clearance	U-opening inner clearance ≤ inner fork distance
Fork Length	U-opening Depth	Fork length ≥ 70–80% of U-opening depth

Perfect for Pallet-Based Workstations

Many operations involve working directly on palletized goods:

Packing and repacking
Order picking
Labeling
Quality inspection
Kitting
Assembly
Sorting

In these situations, workers often start with the pallet on the floor and must bend down repeatedly. This leads to:

Back strain
Fatigue
Lower productivity
Higher injury risk

With a U-shape stationary lift table, the pallet can be raised to an ergonomic working height, allowing workers to handle goods comfortably while still using a pallet truck for transport.

Smooth Pallet Truck In, Pallet Truck Out

One of the biggest advantages of a U-shape design is how quickly pallets can be loaded and unloaded.

There is no need to:

Push heavy pallets up a ramp
Align forklifts carefully
Adjust temporary platforms

The pallet truck simply:

Drives in
Sets down the pallet
Drives out

This keeps material flow fast and predictable, which is especially important in:

Shipping areas
Packing stations
Production lines
Distribution centers

When speed and simplicity matter, U-shape lift tables are an excellent match for pallet truck handling.

Ideal for Low-Height Pallet Truck Loading

U-shape low profile lift tables are built with a very low lowered height, allowing pallet trucks to load pallets at floor level easily.

This means:

No lifting the pallet manually
No special approach angles
No floor modifications in many cases

The low profile design ensures that pallet trucks can operate naturally, just as they do on the warehouse floor.

Safer Handling for Palletized Loads

When pallet trucks place loads onto a lift table, safety is critical. High-quality U-shape stationary lift tables include features such as:

Overload protection
Controlled lifting and lowering
Emergency stop systems
Safety bars to prevent crushing
Stable scissor mechanisms

These features protect both the operator and the load, especially in high-use pallet truck environments.

Fixed Station, Consistent Workflow

A stationary U-shape lift table is best used at a fixed location, such as:

A packing bench
A production cell
A quality control station
A shipping preparation area

Pallet trucks bring the load to the station, the lift table raises it to the correct height, and the work is done efficiently.

Because pallet trucks are already part of the workflow, the lift table becomes a natural extension of the process rather than a disruption.

Common Industries That Benefit from Pallet Truck + U-Shape Lift Tables

This combination is widely used in:

Manufacturing
Warehousing
Logistics
Food processing
Packaging facilities
E-commerce fulfillment
Export handling operations

Anywhere pallet trucks are used to move goods, a U-shape low profile stationary lift table can improve both efficiency and ergonomics.

How to Choose the Right Model for Pallet Truck Use

When selecting a U-shape lift table for pallet truck handling, focus on:

U-Shape Opening Width
Must fit your pallet truck.
Load Capacity
Consider pallet weight + product weight.
Platform Size
Must support your pallet dimensions.
Lift Height Range
Should match your ideal working height.
Duty Cycle
Match the number of lifts per shift.

Choosing the right model ensures smooth pallet truck operation and long-term reliability.

Final Thoughts

If your operation depends on pallet trucks for moving goods, and your team works directly on palletized loads, a U-Shape Low Profile Stationary Lift Table is one of the most practical upgrades you can make.

It allows pallet trucks to:
